Series: 82

  • Grayhill offers a comprehensive range of customizable keypads. Our standard configurations include sealed rubber keypads, vandal-resistant metallic constructions, and options for low-profile or full-travel actuation keypads. We provide various switching technologies, including conductive rubber and metal dome contacts. Options for outputs include matrix output and single pole/common bus. All keypads can be customized with unique legends, and many models feature backlit keys. When integrating a keypad technology into a custom front panel assembly, we can tailor the keypad shape to meet the specific requirements of your application. Customization can include:
  • Legends
  • Bezel color
  • Multiple termination & cabling options
  • Custom electronics
  • Membrane, dome, or carbon pill switching
  • Construction: plastic, silicone rubber, metal, etc. Typical applications include:
  • Transportation equipment
  • Healthcare equipment
  • Fitness equipment
  • Avionics
  • ATMs and kiosks
  • Security systems
  • Industrial controls
Link copied to clipboard. Request Quote
  • Products
  • Description

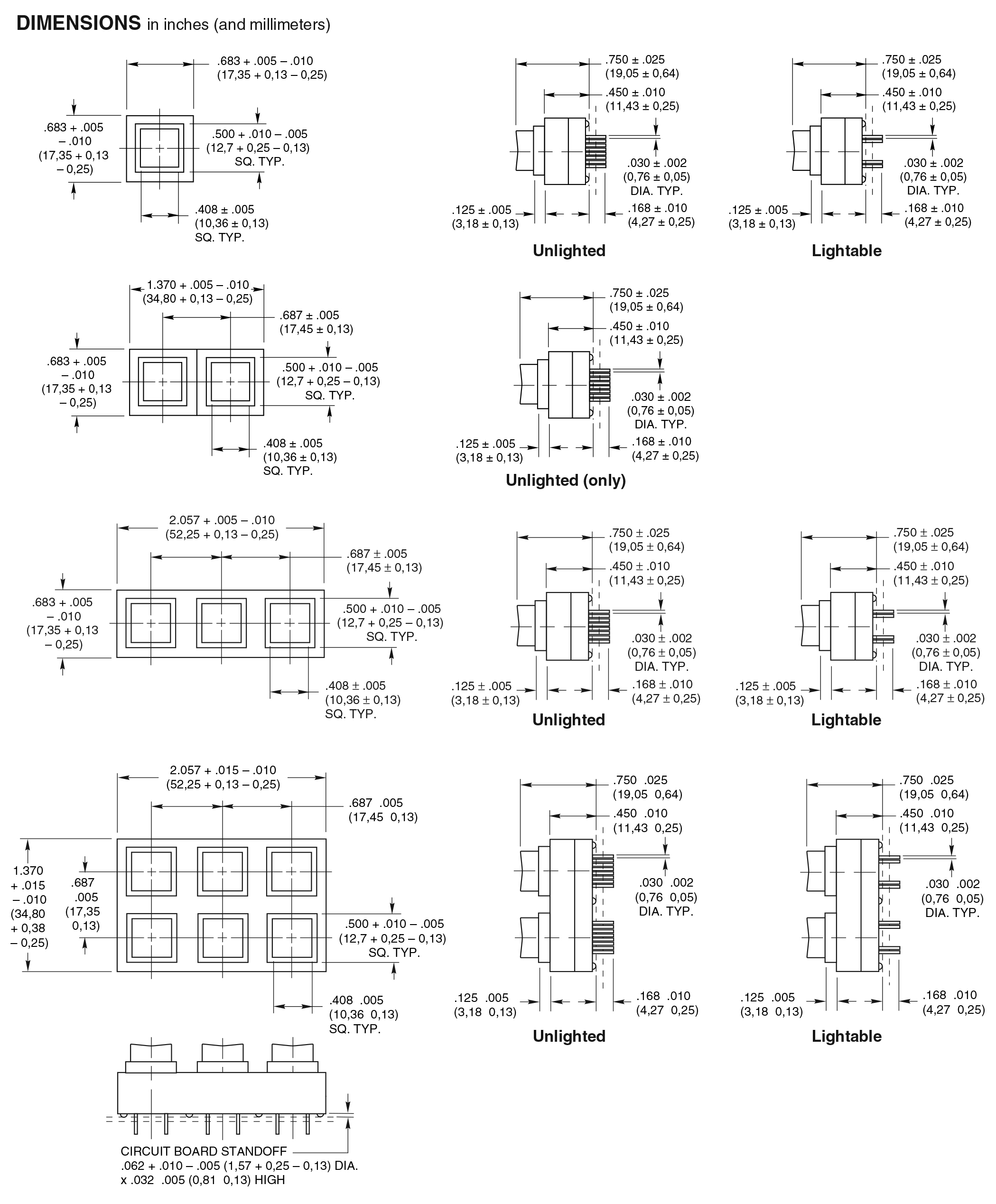

  • Drawings
  • Downloads
Product Configurations Circuitry Maximum Switch Rating Mechanical Life Cycles
82-101-71 1x1SPST100 mA1M
82-101-72 1x12PST100 mA1M
82-101-74 1x14PST100 mA1M
82-150-15 1x12PST100 mA1M
82-150-16 1x1SPST100 mA1M
82-150-17 1x1SPST100 mA1M
82-150-211 1x1SPST100 mA1M
82-150-213 1x12PST100 mA1M
82-150-38 1x1SPST100 mA1M
82-201-41 1x2SPST100 mA1M
82-201-42 1x2SPST100 mA1M
82-201-44 1x24PST100 mA1M
82-301-61 1x3SPST100 mA1M
82-301-64 1x34PST100 mA1M
82-350-10 1x3SPST100 mA1M
82-350-12 1x3SPST100 mA1M
82-350-41 1x3SPST100 mA1M
82-350-43 1x32PST100 mA1M
82-350-8
Keypad 82-350-8
1x32PST100 mA1M
82-350-9
Keypad 82-350-9
1x32PST100 mA1M
82-601-81 2x3SPST100 mA1M
82-601-84 2x34PST100 mA1M
82-601-85 2x3SPST100 mA1M
82-601-86 2x32PST100 mA1M
82-601-87 2x33PST100 mA1M
82-601-88 2x34PST100 mA1M
82-601-89 2x3SPST100 mA1M
82-601-90 2x32PST100 mA1M
82-601-91 2x33PST100 mA1M
82-601-92 2x34PST100 mA1M
82-650-10 2x3SPST100 mA1M
82-650-19 2x3SPST100 mA1M
82-650-71 2x3SPST100 mA1M
82-650-73 2x32PST100 mA1M
82-650-8
Keypad 82-650-8
2x32PST100 mA1M
82-650-9
Keypad 82-650-9
2x32PST100 mA1M

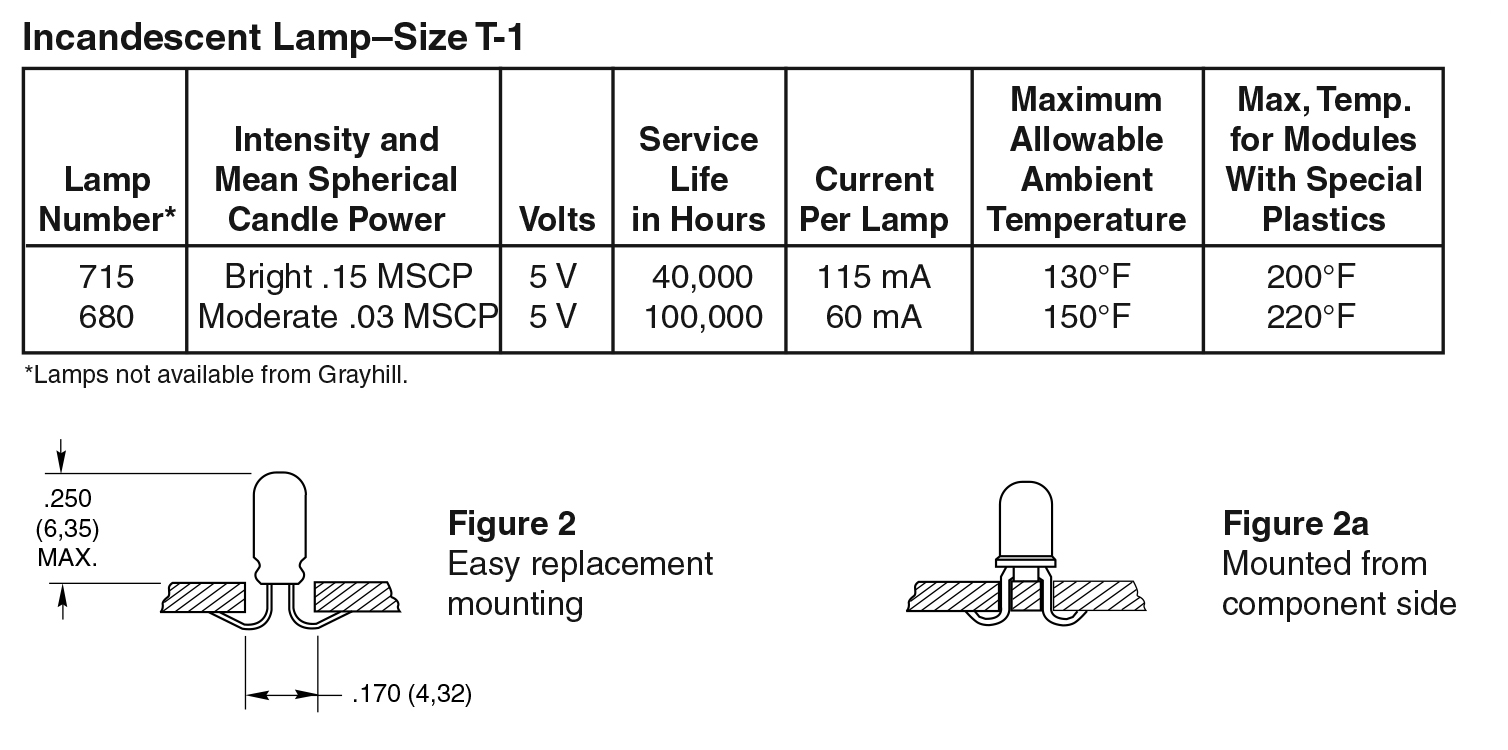

  • Lightable modules will stack in many configurations
  • Life Rating (Cycles): 1,000,000
  • Array: Single Button, 1x2, 1x3, 2x3
  • Buttons: 1, 2, 3, 6
  • Lightable modules will stack in many configurations
  • Life Rating (Cycles): 1,000,000
  • Array: Single Button, 1x2, 1x3, 2x3
  • Buttons: 1, 2, 3, 6
Products
82-101-71
Configurations: 1x1

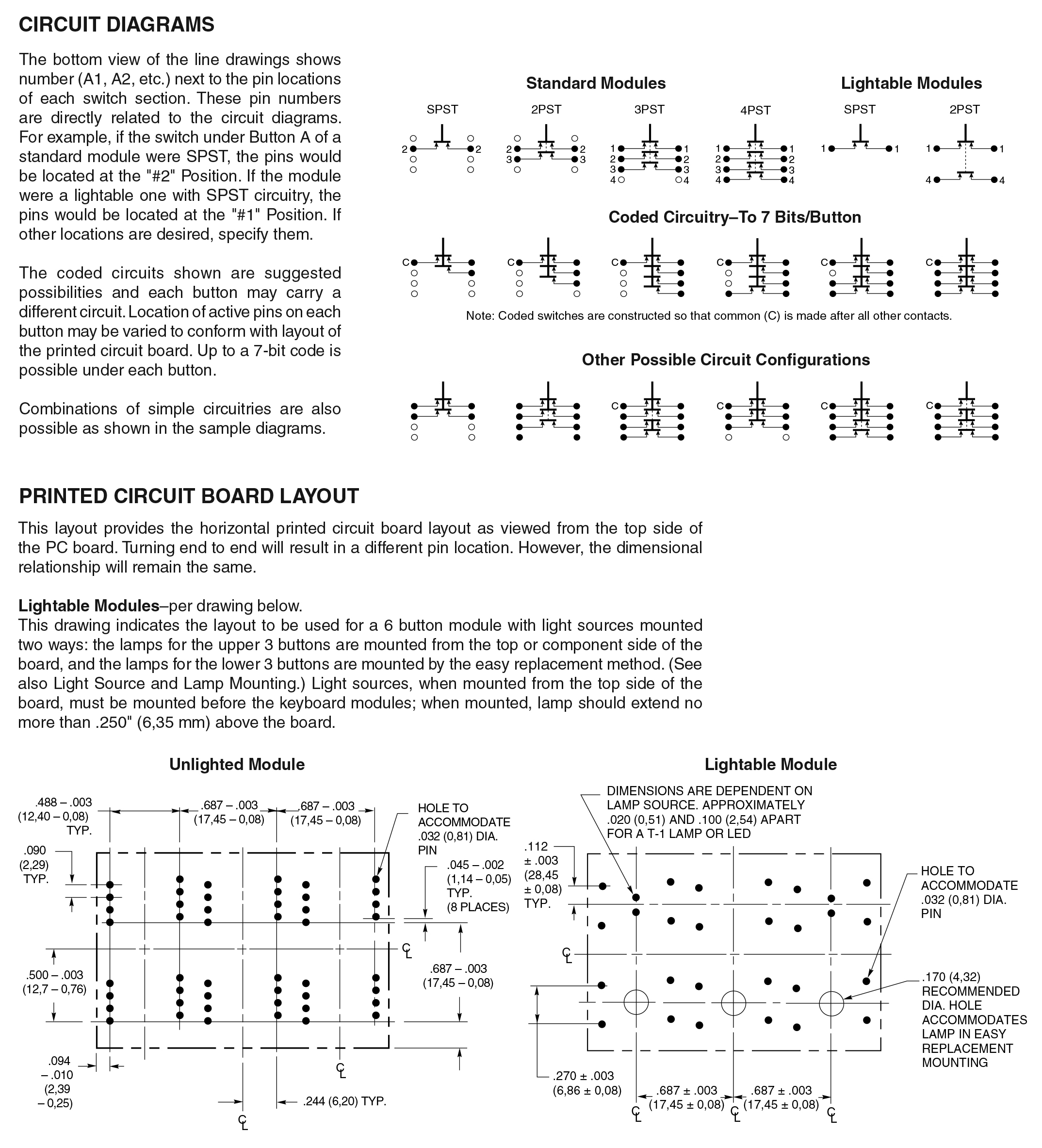

Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-101-72
Configurations: 1x1
Circuitry: 2PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-101-74
Configurations: 1x1
Circuitry: 4PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-150-15
Configurations: 1x1
Circuitry: 2PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-150-16
Configurations: 1x1
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-150-17
Configurations: 1x1
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-150-211
Configurations: 1x1
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-150-213
Configurations: 1x1
Circuitry: 2PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-150-38
Configurations: 1x1
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-201-41
Configurations: 1x2
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-201-42
Configurations: 1x2
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-201-44
Configurations: 1x2
Circuitry: 4PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-301-61
Configurations: 1x3
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-301-64
Configurations: 1x3
Circuitry: 4PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-350-10
Configurations: 1x3
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-350-12
Configurations: 1x3
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-350-41
Configurations: 1x3
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-350-43
Configurations: 1x3
Circuitry: 2PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-350-8
Keypad 82-350-8
Configurations: 1x3
Circuitry: 2PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-350-9
Keypad 82-350-9
Configurations: 1x3
Circuitry: 2PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-601-81
Configurations: 2x3
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-601-84
Configurations: 2x3
Circuitry: 4PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-601-85
Configurations: 2x3
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-601-86
Configurations: 2x3
Circuitry: 2PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-601-87
Configurations: 2x3
Circuitry: 3PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-601-88
Configurations: 2x3
Circuitry: 4PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-601-89
Configurations: 2x3
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-601-90
Configurations: 2x3
Circuitry: 2PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-601-91
Configurations: 2x3
Circuitry: 3PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-601-92
Configurations: 2x3
Circuitry: 4PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-650-10
Configurations: 2x3
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-650-19
Configurations: 2x3
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-650-71
Configurations: 2x3
Circuitry: SPST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-650-73
Configurations: 2x3
Circuitry: 2PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-650-8
Keypad 82-650-8
Configurations: 2x3
Circuitry: 2PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
82-650-9
Keypad 82-650-9
Configurations: 2x3
Circuitry: 2PST
Maximum Switch Rating: 100 mA
Mechanical Life Cycles: 1M
