Series: 96
- Grayhill offers a comprehensive range of customizable keypads. Our standard configurations include sealed rubber keypads, vandal-resistant metallic constructions, and options for low-profile or full-travel actuation keypads. We provide various switching technologies, including conductive rubber and metal dome contacts. Options for outputs include matrix output and single pole/common bus. All keypads can be customized with unique legends, and many models feature backlit keys. When integrating a keypad technology into a custom front panel assembly, we can tailor the keypad shape to meet the specific requirements of your application. Customization can include:
- Legends
- Bezel color
- Multiple termination & cabling options
- Custom electronics
- Membrane, dome, or carbon pill switching
- Construction: plastic, silicone rubber, metal, etc. Typical applications include:
- Transportation equipment
- Healthcare equipment
- Fitness equipment
- Avionics
- ATMs and kiosks
- Security systems
- Industrial controls
Link copied to clipboard.
Request Quote
- Products
- Description

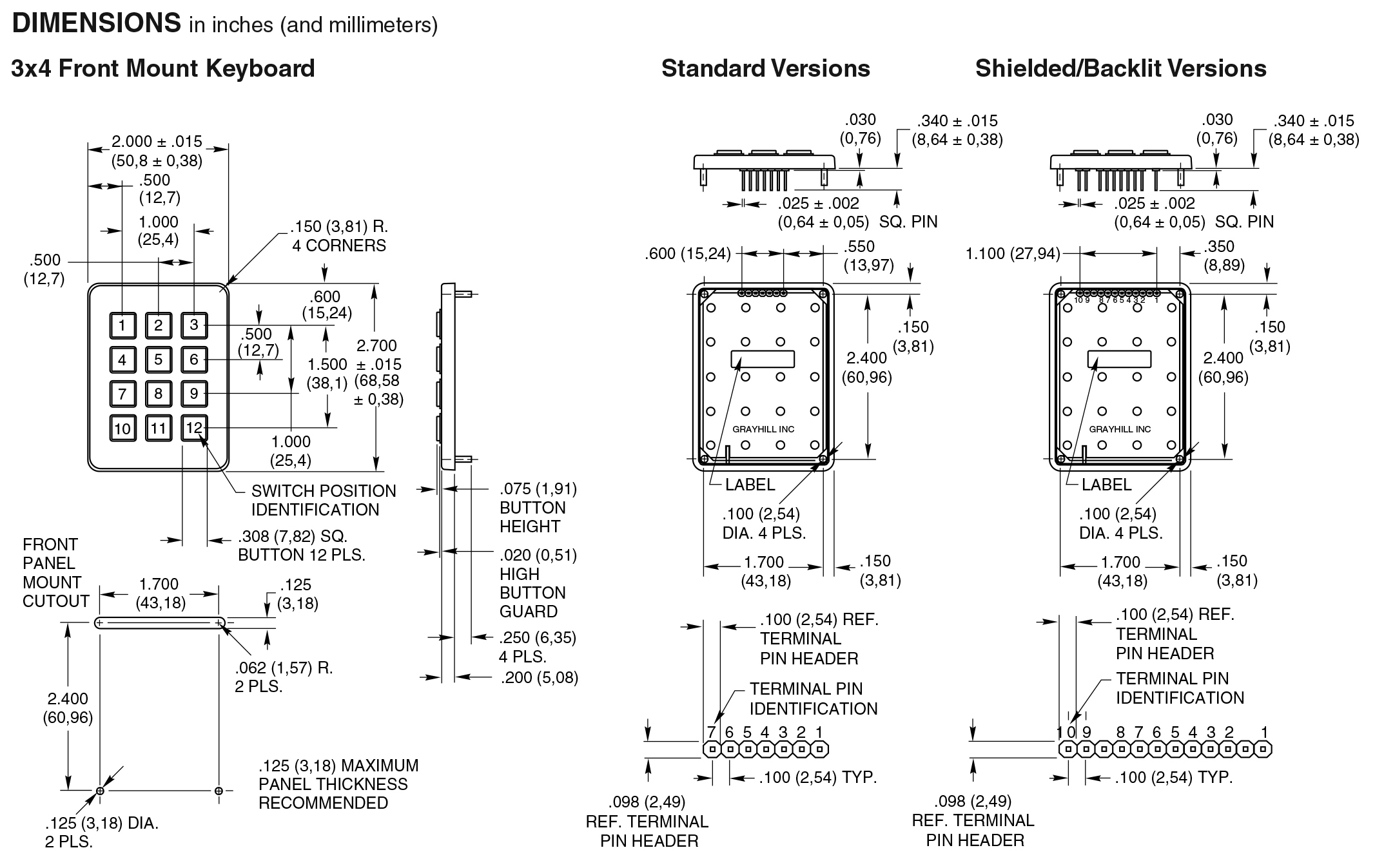

- Drawings
- Downloads
| Product | Configurations | Circuitry | Maximum Switch Rating | Mechanical Life Cycles |
|---|---|---|---|---|
|
Keypad
96AB2-102-F
|
3x4 | Matrix | 5 mA | 1M |
|
Keypad
96AB2-102-F-EL
|
3x4 | Matrix | 5 mA | 1M |
|
Keypad
96AB2-102-R
|
3x4 | Matrix | 5 mA | 1M |
|
Keypad
96AB2-102-R-EL
|
3x4 | Matrix | 5 mA | 1M |
|
Keypad
96AB2-152-F
|
3x4 | Matrix | 5 mA | 1M |
|
Keypad
96AB2-152-F-EL
|
3x4 | Matrix | 5 mA | 1M |
|
Keypad
96AB2-152-R
|
3x4 | Matrix | 5 mA | 1M |
|
Keypad
96AB2-152-R-EL
|
3x4 | Matrix | 5 mA | 1M |
|
Keypad
96AC2-102-F
|
3x4 | Single Pole Common Bus | 5 mA | 1M |
|
Keypad
96AC2-102-R
|
3x4 | Single Pole Common Bus | 5 mA | 1M |
|
Keypad
96AC2-152-F
|
3x4 | Single Pole Common Bus | 5 mA | 1M |
|
Keypad
96AC2-152-R
|
3x4 | Single Pole Common Bus | 5 mA | 1M |
|
Keypad
96BB2-001-F
|
4x4 | Matrix | 5 mA | 1M |
|
Keypad
96BB2-002-F
|
4x4 | Matrix | 5 mA | 1M |
|
Keypad
96BB2-006-F
|
4x4 | Matrix | 5 mA | 1M |
|
Keypad
96BB2-006-F-EL
|
4x4 | Matrix | 5 mA | 1M |
|
Keypad
96BB2-006-R
|
4x4 | Matrix | 5 mA | 1M |
|
Keypad
96BB2-006-R-EL
|
4x4 | Matrix | 5 mA | 1M |
|
Keypad
96BB2-008-F
|
4x4 | Matrix | 5 mA | 1M |
|
Keypad
96BB2-056-F
|
4x4 | Matrix | 5 mA | 1M |
|
Keypad
96BB2-056-F-EL
|
4x4 | Matrix | 5 mA | 1M |
|
Keypad
96BB2-056-R
|
4x4 | Matrix | 5 mA | 1M |
|
Keypad
96BB2-056-R-EL
|
4x4 | Matrix | 5 mA | 1M |
|
Keypad
96BC2-006-F
|
4x4 | Single Pole Common Bus | 5 mA | 1M |
|
Keypad
96BC2-056-R
|
4x4 | Single Pole Common Bus | 5 mA | 1M |
- Conductive Rubber Domes
- Backlit Capable
- Array: 3x4, 4x4
- Buttons: 1, 3, 6
- Conductive Rubber Domes
- Backlit Capable
- Array: 3x4, 4x4
- Buttons: 1, 3, 6
Products
|
|
Keypad
96AB2-102-F
Configurations: 3x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96AB2-102-F-EL
Configurations: 3x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96AB2-102-R
Configurations: 3x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96AB2-102-R-EL
Configurations: 3x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96AB2-152-F
Configurations: 3x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96AB2-152-F-EL
Configurations: 3x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96AB2-152-R
Configurations: 3x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96AB2-152-R-EL
Configurations: 3x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96AC2-102-F
Configurations: 3x4 Circuitry: Single Pole Common Bus Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96AC2-102-R
Configurations: 3x4 Circuitry: Single Pole Common Bus Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96AC2-152-F
Configurations: 3x4 Circuitry: Single Pole Common Bus Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96AC2-152-R
Configurations: 3x4 Circuitry: Single Pole Common Bus Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96BB2-001-F
Configurations: 4x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96BB2-002-F
Configurations: 4x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96BB2-006-F
Configurations: 4x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96BB2-006-F-EL
Configurations: 4x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96BB2-006-R
Configurations: 4x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96BB2-006-R-EL
Configurations: 4x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96BB2-008-F
Configurations: 4x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96BB2-056-F
Configurations: 4x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96BB2-056-F-EL
Configurations: 4x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96BB2-056-R
Configurations: 4x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96BB2-056-R-EL
Configurations: 4x4 Circuitry: Matrix Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96BC2-006-F
Configurations: 4x4 Circuitry: Single Pole Common Bus Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
|
|
Keypad
96BC2-056-R
Configurations: 4x4 Circuitry: Single Pole Common Bus Maximum Switch Rating: 5 mA Mechanical Life Cycles: 1M |
