Series: 70X-IDC
- DC Input
- Agency Approval: UL, CSA, CE
Link copied to clipboard.
Request Quote
- Products
- Description

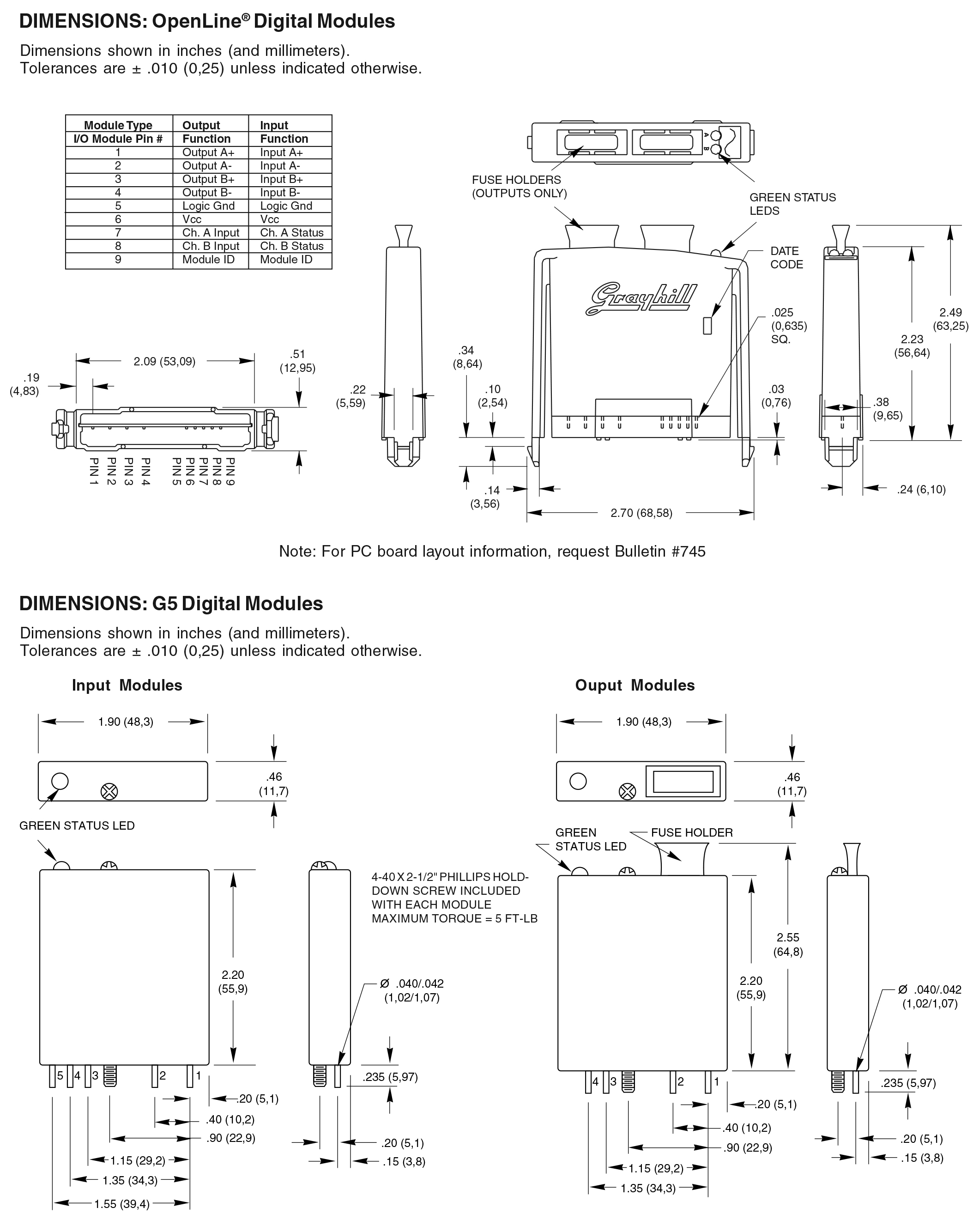

- Drawings
- Downloads
| Product | Module Type | Module Form Factor | Voltage Load | Nominal Logic Voltage |
|---|---|---|---|---|
|
I/O Modules
70-IDC15
|
DC Input | Standard | 32VDC | 15VDC |
|
I/O Modules
70-IDC24
|
DC Input | Standard | 32VDC | 24VDC |
|
I/O Modules
70-IDC5
|
DC Input | Standard | 32VDC | 5VDC |
|
I/O Modules
70-IDC5B
|
DC Input | Standard | 32VDC | 5VDC |
|
I/O Modules
70-IDC5K
|
DC Input | Standard | 16VDC | 5VDC |
|
I/O Modules
70G-IDC15
|
DC Input | G5 | 32VDC | 15VDC |
|
I/O Modules
70G-IDC24
|
DC Input | G5 | 32VDC | 24VDC |
|
I/O Modules
70G-IDC5
|
DC Input | G5 | 32VDC | 5VDC |
|
I/O Modules
70G-IDC5B
|
DC Input | G5 | 32VDC | 5VDC |
|
I/O Modules
70L-IDC
|
DC Input | OpenLine | 32VDC | 5VDC |
|
I/O Modules
70L-IDCB
|
DC Input | OpenLine | 32VDC | 5VDC |
|
I/O Modules
70M-IDC15
|
DC Input | Miniature | 32VDC | 15VDC |
|
I/O Modules
70M-IDC24
|
DC Input | Miniature | 32VDC | 24VDC |
|
I/O Modules
70M-IDC5
|
DC Input | Miniature | 32VDC | 5VDC |
- DC Input
- Agency Approval: UL, CSA, CE
- DC Input
- Agency Approval: UL, CSA, CE
Products
|
|
I/O Modules
70-IDC15
Module Type: DC Input Module Form Factor: Standard Voltage Load: 32VDC Nominal Logic Voltage: 15VDC |
|
|
I/O Modules
70-IDC24
Module Type: DC Input Module Form Factor: Standard Voltage Load: 32VDC Nominal Logic Voltage: 24VDC |
|
|
I/O Modules
70-IDC5
Module Type: DC Input Module Form Factor: Standard Voltage Load: 32VDC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70-IDC5B
Module Type: DC Input Module Form Factor: Standard Voltage Load: 32VDC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70-IDC5K
Module Type: DC Input Module Form Factor: Standard Voltage Load: 16VDC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70G-IDC15
Module Type: DC Input Module Form Factor: G5 Voltage Load: 32VDC Nominal Logic Voltage: 15VDC |
|
|
I/O Modules
70G-IDC24
Module Type: DC Input Module Form Factor: G5 Voltage Load: 32VDC Nominal Logic Voltage: 24VDC |
|
|
I/O Modules
70G-IDC5
Module Type: DC Input Module Form Factor: G5 Voltage Load: 32VDC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70G-IDC5B
Module Type: DC Input Module Form Factor: G5 Voltage Load: 32VDC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70L-IDC
Module Type: DC Input Module Form Factor: OpenLine Voltage Load: 32VDC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70L-IDCB
Module Type: DC Input Module Form Factor: OpenLine Voltage Load: 32VDC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70M-IDC15
Module Type: DC Input Module Form Factor: Miniature Voltage Load: 32VDC Nominal Logic Voltage: 15VDC |
|
|
I/O Modules
70M-IDC24
Module Type: DC Input Module Form Factor: Miniature Voltage Load: 32VDC Nominal Logic Voltage: 24VDC |
|
|
I/O Modules
70M-IDC5
Module Type: DC Input Module Form Factor: Miniature Voltage Load: 32VDC Nominal Logic Voltage: 5VDC |
