Series: 70X-IDCX
- AC/DC Input
- Agency Approval: UL, CSA, CE, TUV
Link copied to clipboard.
Request Quote
- Products
- Description

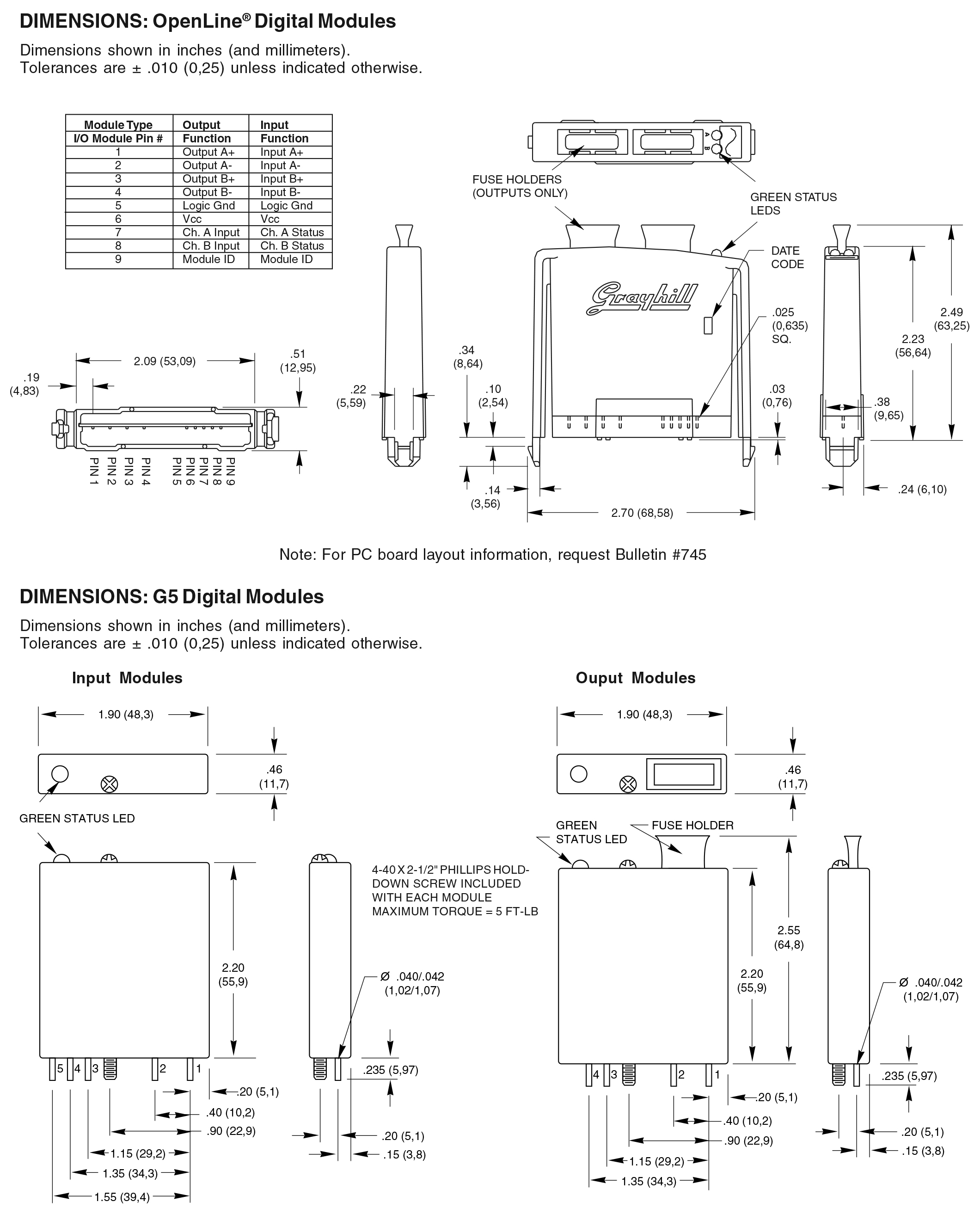

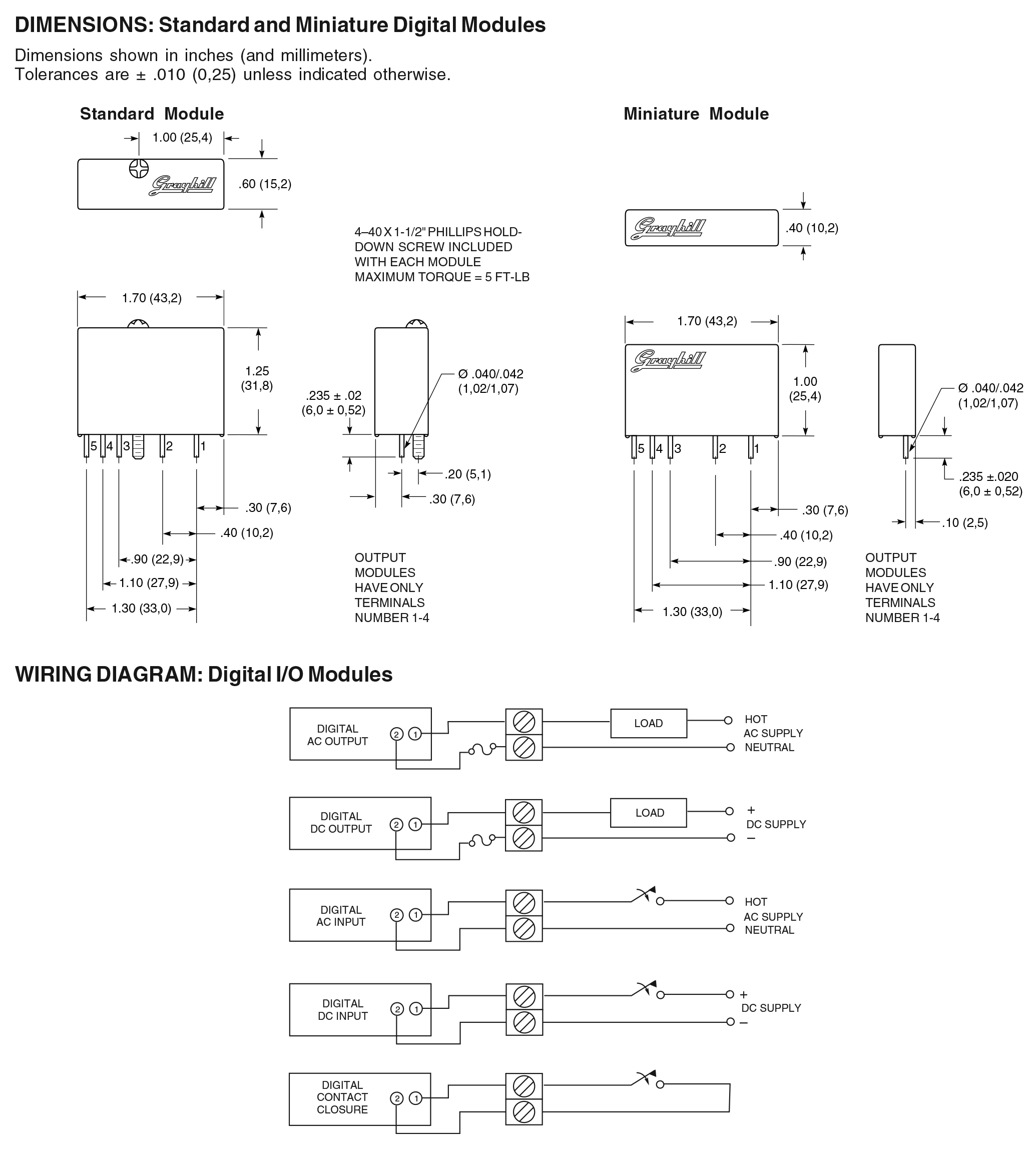

- Drawings
- Downloads
| Product | Module Type | Module Form Factor | Voltage Load | Nominal Logic Voltage |
|---|---|---|---|---|
|
I/O Modules
70-IDC15NP
|
AC/DC Input | Standard | 32VDC/32VAC | 15VDC |
|
I/O Modules
70-IDC24NP
|
AC/DC Input | Standard | 32VDC/32VAC | 24VDC |
|
I/O Modules
70-IDC5NP
|
AC/DC Input | Standard | 32VDC/32VAC | 5VDC |
|
I/O Modules
70G-IDC15NP
|
AC/DC Input | G5 | 32VDC/32VAC | 15VDC |
|
I/O Modules
70G-IDC5G
|
AC/DC Input | G5 | 60VDC/60VAC | 5VDC |
|
I/O Modules
70G-IDC5NP
|
AC/DC Input | G5 | 32VDC/32VAC | 5VDC |
|
I/O Modules
70L-IDCNP
|
AC/DC Input | OpenLine | 32VDC/32VAC | 5VDC |
|
I/O Modules
70M-IDC5G
|
AC/DC Input | Miniature | 60VDC/60VAC | 5VDC |
|
I/O Modules
70M-IDC5N
|
AC/DC Input | Miniature | 60VDC/60VAC | 5VDC |
|
I/O Modules
70M-IDC5NP
|
AC/DC Input | Miniature | 32VDC/32VAC | 5VDC |
- AC/DC Input
- Agency Approval: UL, CSA, CE, TUV
- AC/DC Input
- Agency Approval: UL, CSA, CE, TUV
Products
|
|
I/O Modules
70-IDC15NP
Module Type: AC/DC Input Module Form Factor: Standard Voltage Load: 32VDC/32VAC Nominal Logic Voltage: 15VDC |
|
|
I/O Modules
70-IDC24NP
Module Type: AC/DC Input Module Form Factor: Standard Voltage Load: 32VDC/32VAC Nominal Logic Voltage: 24VDC |
|
|
I/O Modules
70-IDC5NP
Module Type: AC/DC Input Module Form Factor: Standard Voltage Load: 32VDC/32VAC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70G-IDC15NP
Module Type: AC/DC Input Module Form Factor: G5 Voltage Load: 32VDC/32VAC Nominal Logic Voltage: 15VDC |
|
|
I/O Modules
70G-IDC5G
Module Type: AC/DC Input Module Form Factor: G5 Voltage Load: 60VDC/60VAC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70G-IDC5NP
Module Type: AC/DC Input Module Form Factor: G5 Voltage Load: 32VDC/32VAC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70L-IDCNP
Module Type: AC/DC Input Module Form Factor: OpenLine Voltage Load: 32VDC/32VAC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70M-IDC5G
Module Type: AC/DC Input Module Form Factor: Miniature Voltage Load: 60VDC/60VAC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70M-IDC5N
Module Type: AC/DC Input Module Form Factor: Miniature Voltage Load: 60VDC/60VAC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70M-IDC5NP
Module Type: AC/DC Input Module Form Factor: Miniature Voltage Load: 32VDC/32VAC Nominal Logic Voltage: 5VDC |
