Series: 04J

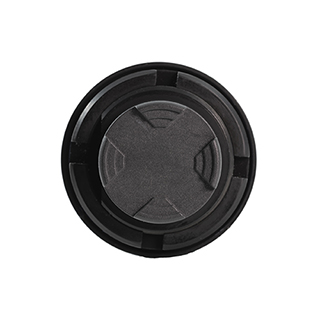

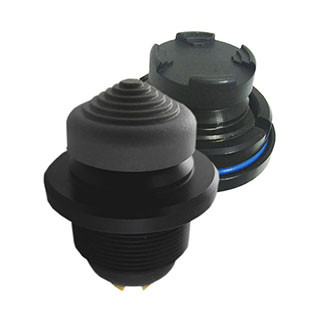

Grayhill’s Discrete Joysticks are a robust solution suitable for various applications. They come with a wide range of contact mechanisms, circuitry, mounting options, and termination options. Additionally, we offer customization for actuation force, travel distance, and cabling options. Our 04J Discrete Joysticks provide rugged, sealed, 4-way directional control with a center pushbutton for easy navigation through menu options. They boast a long-life rating of 100,000 cycles and feature a compact design.
Link copied to clipboard.
Request Quote
- Products
- Description
- Drawings
- Downloads
| Product | Max Switch Rating | Pushbutton | Mounting Configuration | UL Rated |
|---|---|---|---|---|
|
Discrete Joystick
04J-AP-C01
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-AP-C02
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-AP-C12
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-AP-T01
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-AP-T02
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-AS-C01
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-AS-C02
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-AS-C11
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-AS-C12
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-AS-T01
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-AS-T02
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-AS-T11
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-BP-C01
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-BP-C11
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-BP-T01
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-BP-T02
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-BP-T12
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-BS-C01
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-BS-C02
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-BS-C12
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-BS-T01
|
2 Amp | Yes | Panel | No |
|
Discrete Joystick
04J-BS-T02
|
2 Amp | Yes | Panel | No |
- Rugged & Sealed (IP67)

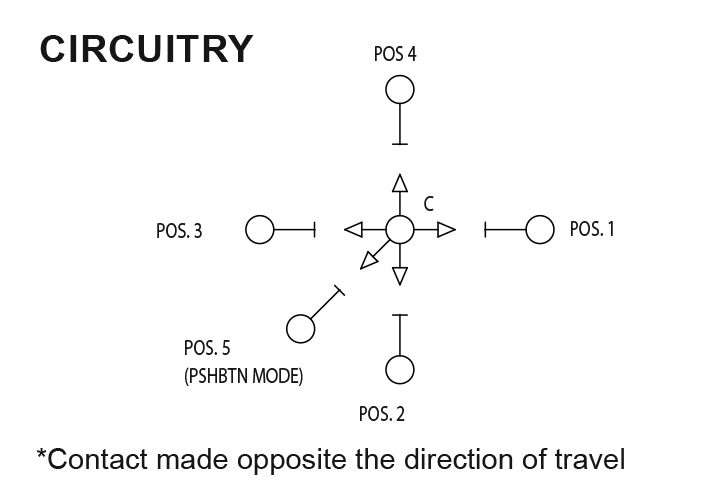

- 4 directions plus pushbutton
- Life Rating (cycles): 100,000

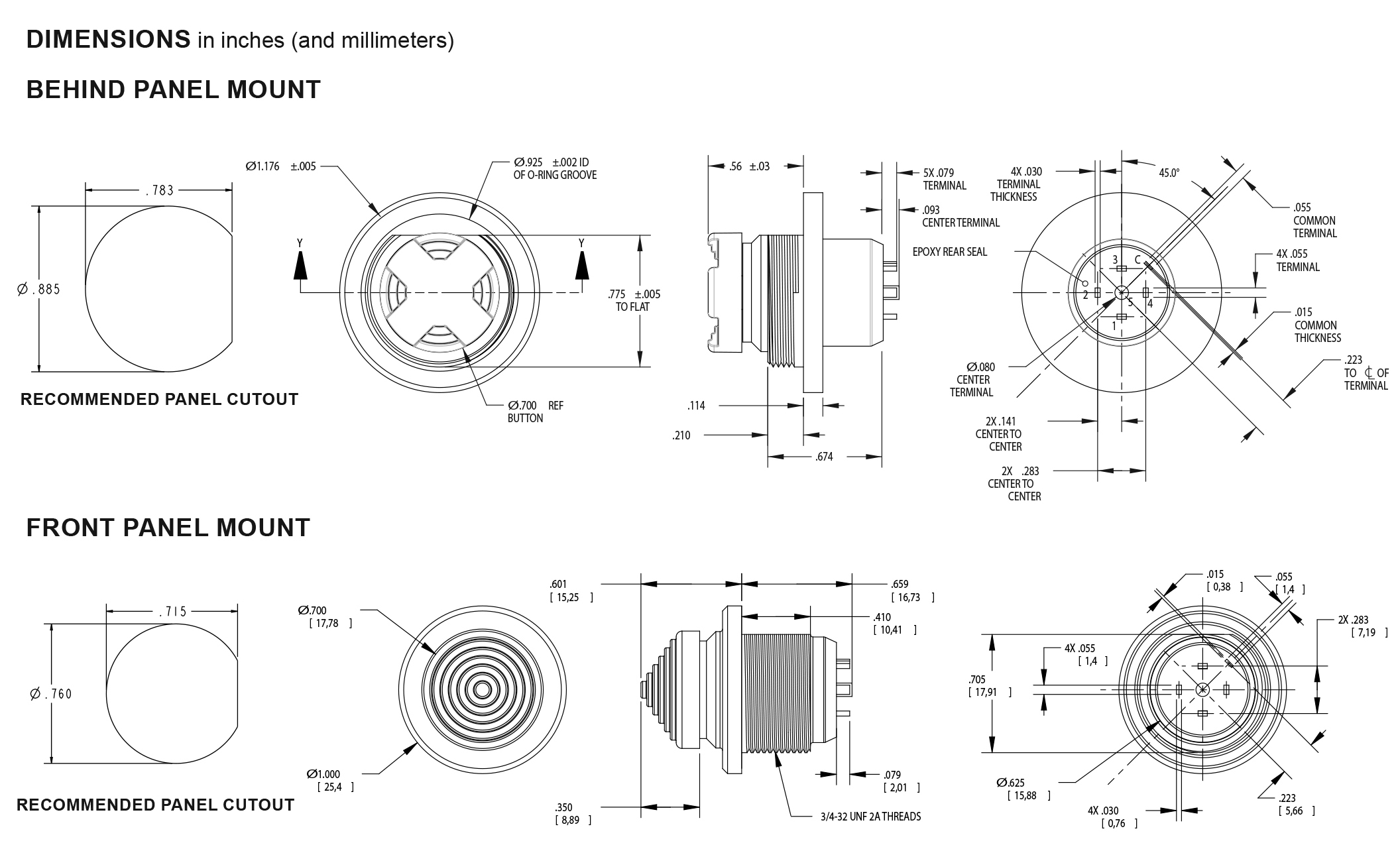

- Size inches [mm]: 1.176 [29,87] dia
- Depth inches [mm]: Behind panel: 0.443 [11,25] Front panel: 0.659 [16,73]
- Rugged & Sealed (IP67)
- 4 directions plus pushbutton
- Life Rating (cycles): 100,000
- Size inches [mm]: 1.176 [29,87] dia
- Depth inches [mm]: Behind panel: 0.443 [11,25] Front panel: 0.659 [16,73]
