Series: 60AR

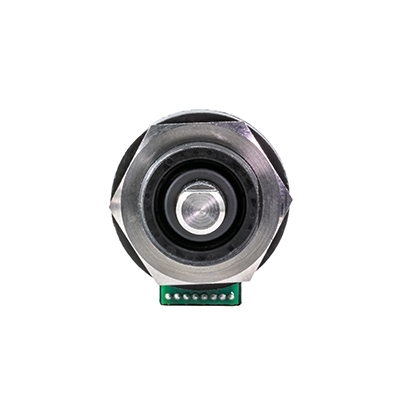

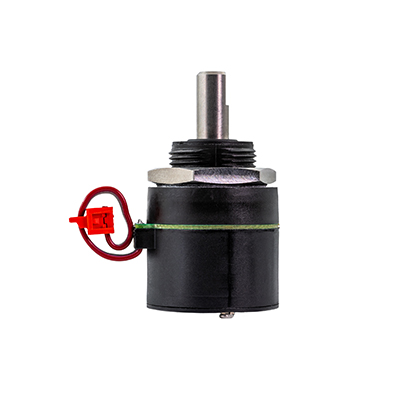

Grayhill's 60AR NavCoder Multifunction Joysticks are specialized interface devices designed for navigating on-screen software. They provide directional control in 4-way or 8-way configurations and include a central pushbutton for selecting menu options. In addition, the joysticks have a rotational control feature that allows users to scroll through various options or adjust settings, such as volume intensity.
Link copied to clipboard.
Request Quote
- Products
- Description

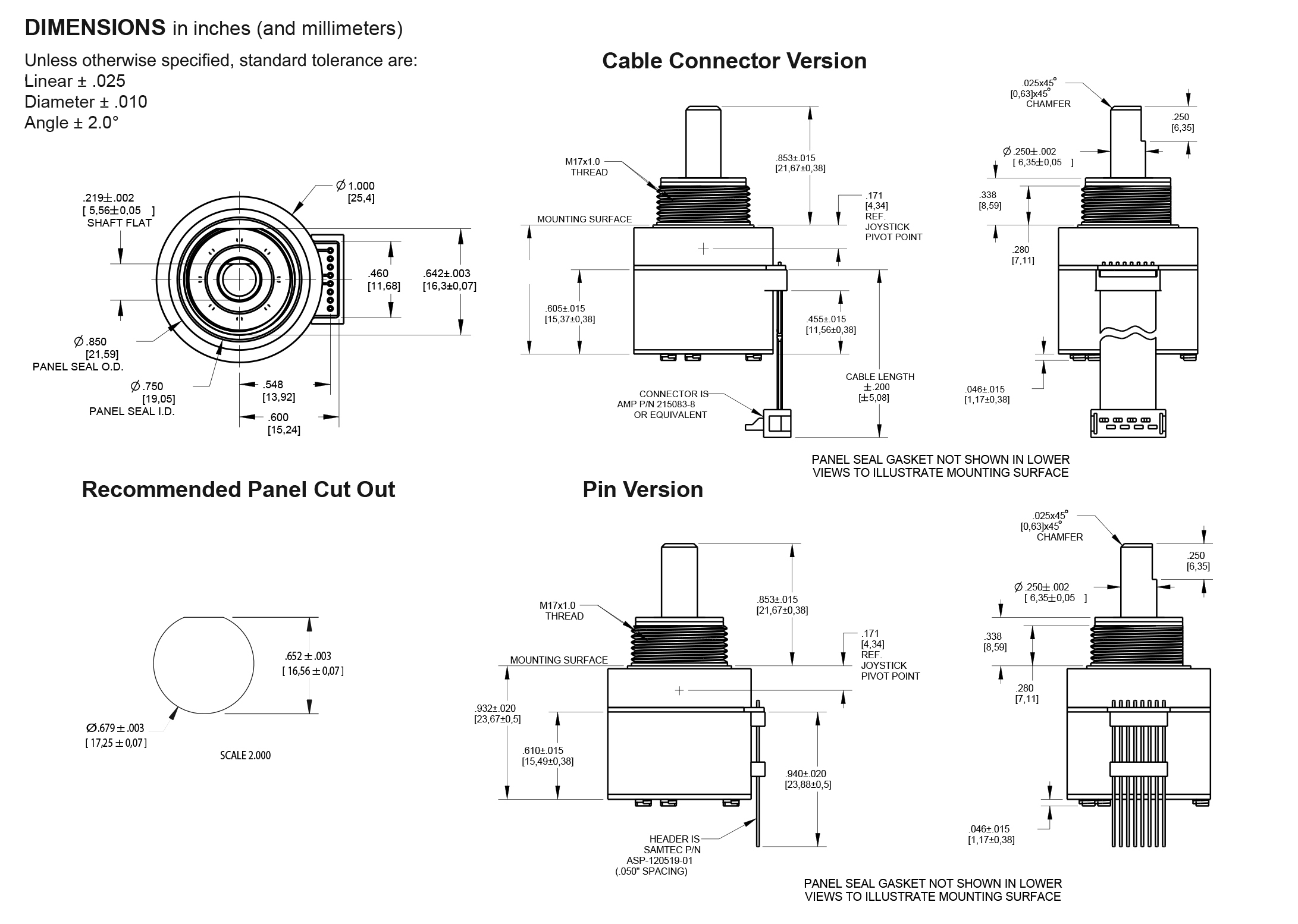

- Drawings
- Downloads
| Product | Encoder Angle of Throw | Joystick Positions | Output | Shaft Diameter: Deck A (in) |
|---|---|---|---|---|
|
NavCoder Multifunction Joystick
60AR00-4-060C
|
4 | 4 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR00-4-P
|
4 | 4 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR00-8-P
|
4 | 8 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-4-020C
|
4 | 4 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-4-020S
|
4 | 4 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-4-040C
|
4 | 4 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-4-040S
|
4 | 4 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-4-060C
|
4 | 4 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-4-060S
|
4 | 4 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-4-065C
|
4 | 4 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-4-100C
|
4 | 4 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-4-100S
|
4 | 4 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-4-250S
|
4 | 4 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-4-P
|
4 | 4 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-8-020C
|
4 | 8 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-8-025C
|
4 | 8 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-8-040C
|
4 | 8 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-8-040S
|
4 | 8 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-8-060C
|
4 | 8 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-8-060S
|
4 | 8 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-8-100C
|
4 | 8 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-8-250C
|
4 | 8 | Quadrature, Digital Voltage | 0.25 |
|
NavCoder Multifunction Joystick
60AR18-8-P
|
4 | 8 | Quadrature, Digital Voltage | 0.25 |
- Rugged & Sealed (IP67) Joystick integrated rotary encoder and pushbutton
- Life Rating (cycles): 1M for rotary and pushbutton, 500K for joystick
- Size inches [mm]: 1 [25,4] dia
- Depth Behind Panel inches [mm]: 0.950 [24,13]
- Resolution: 20 PPR
- Rugged & Sealed (IP67) Joystick integrated rotary encoder and pushbutton
- Life Rating (cycles): 1M for rotary and pushbutton, 500K for joystick
- Size inches [mm]: 1 [25,4] dia
- Depth Behind Panel inches [mm]: 0.950 [24,13]
- Resolution: 20 PPR
Products
|
|
NavCoder Multifunction Joystick
60AR00-4-060C
Encoder Angle of Throw: 4 Joystick Positions: 4 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR00-4-P
Encoder Angle of Throw: 4 Joystick Positions: 4 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR00-8-P
Encoder Angle of Throw: 4 Joystick Positions: 8 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-4-020C
Encoder Angle of Throw: 4 Joystick Positions: 4 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-4-020S
Encoder Angle of Throw: 4 Joystick Positions: 4 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-4-040C
Encoder Angle of Throw: 4 Joystick Positions: 4 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-4-040S
Encoder Angle of Throw: 4 Joystick Positions: 4 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-4-060C
Encoder Angle of Throw: 4 Joystick Positions: 4 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-4-060S
Encoder Angle of Throw: 4 Joystick Positions: 4 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-4-065C
Encoder Angle of Throw: 4 Joystick Positions: 4 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-4-100C
Encoder Angle of Throw: 4 Joystick Positions: 4 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-4-100S
Encoder Angle of Throw: 4 Joystick Positions: 4 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-4-250S
Encoder Angle of Throw: 4 Joystick Positions: 4 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-4-P
Encoder Angle of Throw: 4 Joystick Positions: 4 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-8-020C
Encoder Angle of Throw: 4 Joystick Positions: 8 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-8-025C
Encoder Angle of Throw: 4 Joystick Positions: 8 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-8-040C
Encoder Angle of Throw: 4 Joystick Positions: 8 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-8-040S
Encoder Angle of Throw: 4 Joystick Positions: 8 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-8-060C
Encoder Angle of Throw: 4 Joystick Positions: 8 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-8-060S
Encoder Angle of Throw: 4 Joystick Positions: 8 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-8-100C
Encoder Angle of Throw: 4 Joystick Positions: 8 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-8-250C
Encoder Angle of Throw: 4 Joystick Positions: 8 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
|
|
NavCoder Multifunction Joystick
60AR18-8-P
Encoder Angle of Throw: 4 Joystick Positions: 8 Output: Quadrature, Digital Voltage Shaft Diameter: Deck A (in): 0.25 |
