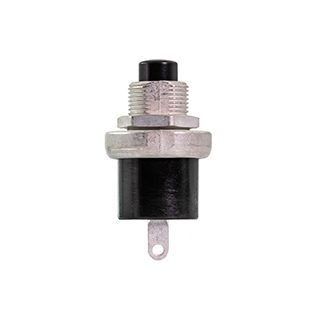

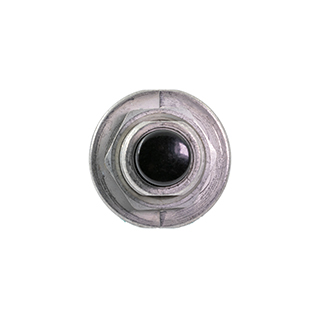

Series: 10-4000
Grayhill’s 10-4000 Pushbutton switches with momentary contact are a reliable, durable solution for many applications. Our pushbuttons feature various contact mechanisms, circuitry, mounting, and termination options, making it easy to find a model that suits your needs. Typical applications for our pushbutton switches include security systems, industrial manufacturing equipment, casino gaming, audio/video equipment, avionics, fitness equipment, and test and measurement equipment. If you require customization, we can provide tailored options. This includes adjusting the actuation force and travel distance and offering specific termination and cabling solutions. Our flexibility allows you to create the ideal pushbutton switch for your use case. Additionally, we offer a range of customizations such as custom caps and legends, unique detents (clicks) and tactile feedback, multiple termination and cabling options, custom electronics, and integration into a Grayhill custom front panel assembly. With these options, you can ensure that your pushbutton switches meet your exact specifications and requirements.
- Products
- Description

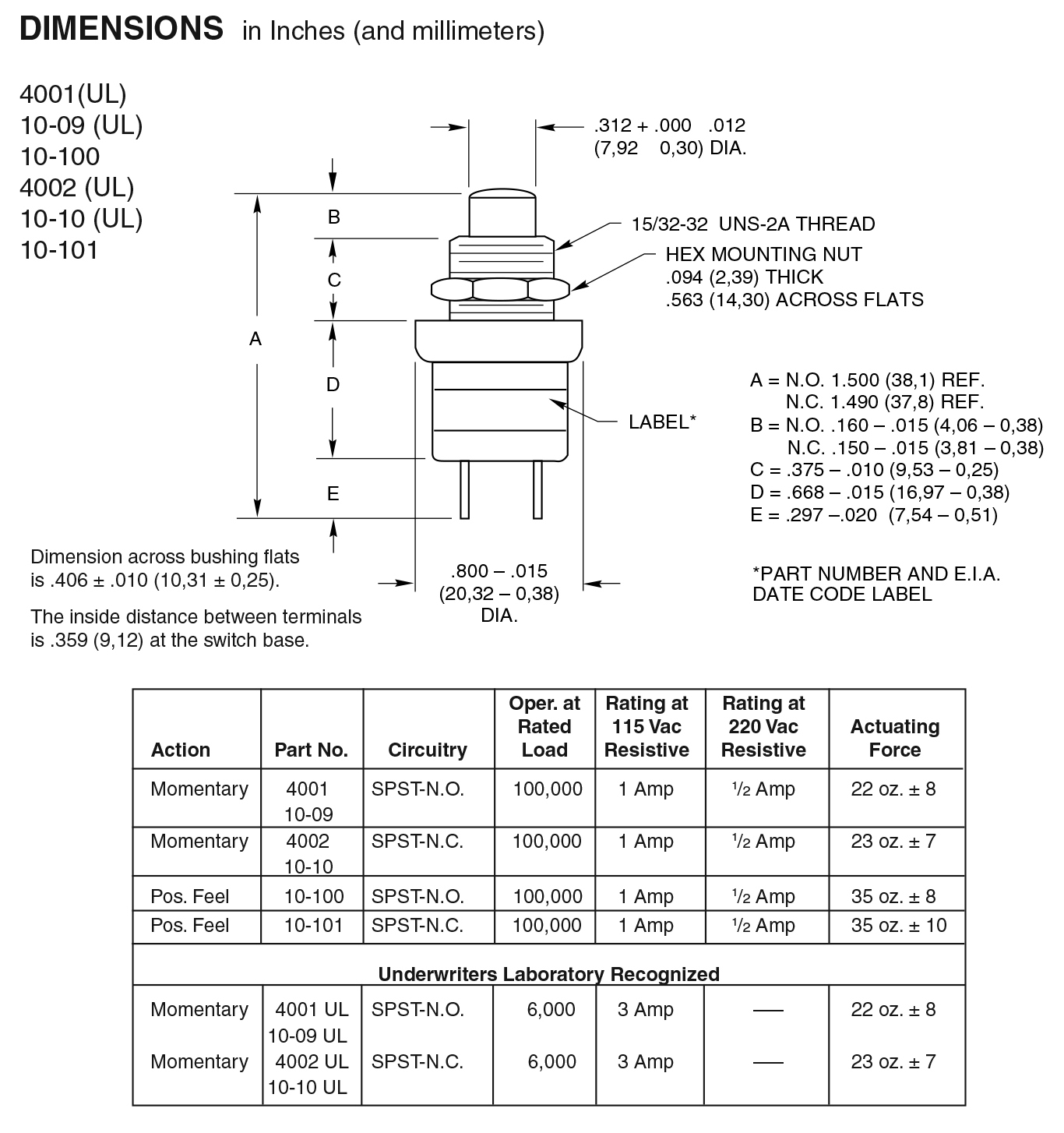

- Drawings
- Downloads
| Product | Contact Type | Circuitry | Max Switch Rating | Mechanical Life Cycles |
|---|---|---|---|---|
|
Pushbutton
10-09
|
Wiping Contacts with Overtravel | SPST - N.O. | 1 Amp | 100000 |
|
Pushbutton
10-09UL
|
Wiping Contacts with Overtravel | SPST - N.O. | 1 Amp | 6000 |
|
Pushbutton
10-10
|
Wiping Contacts with Overtravel | SPST - N.C. | 1 Amp | 100000 |
|
Pushbutton
10-100
|
Wiping Contacts with Overtravel | SPST - N.O. | 1 Amp | 100000 |
|
Pushbutton
10-101
|
Wiping Contacts with Overtravel | SPST - N.C. | 1 Amp | 100000 |
|
Pushbutton
10-10UL
|
Wiping Contacts with Overtravel | SPST - N.C. | 1 Amp | 6000 |
|
Pushbutton
4001
|
Wiping Contacts with Overtravel | SPST - N.O. | 1 Amp | 100000 |
|
Pushbutton
4001UL
|
Wiping Contacts with Overtravel | SPST - N.O. | 3 Amp | 6000 |
|
Pushbutton
4002
|
Wiping Contacts with Overtravel | SPST - N.C. | 1 Amp | 100000 |
|
Pushbutton
4002UL
|
Wiping Contacts with Overtravel | SPST - N.C. | 3 Amp | 6000 |
- Momentary, Positive Feel, UL Rated Versions
- Electrical Rating: 3 Amps at 115 Vac
- Circuitry: SPST
- Termination: Solder Lug
- Behind Panel Depth Inches [mm]:0.688 [16,97]
- Life Rating (cycles): up to 100,000
- Momentary, Positive Feel, UL Rated Versions
- Electrical Rating: 3 Amps at 115 Vac
- Circuitry: SPST
- Termination: Solder Lug
- Behind Panel Depth Inches [mm]:0.688 [16,97]
- Life Rating (cycles): up to 100,000
|
|
Pushbutton
10-09
Contact Type: Wiping Contacts with Overtravel Circuitry: SPST - N.O. Max Switch Rating: 1 Amp Mechanical Life Cycles: 100000 |
|
|
Pushbutton
10-09UL
Contact Type: Wiping Contacts with Overtravel Circuitry: SPST - N.O. Max Switch Rating: 1 Amp Mechanical Life Cycles: 6000 |
|
|
Pushbutton
10-10
Contact Type: Wiping Contacts with Overtravel Circuitry: SPST - N.C. Max Switch Rating: 1 Amp Mechanical Life Cycles: 100000 |
|
|
Pushbutton
10-100
Contact Type: Wiping Contacts with Overtravel Circuitry: SPST - N.O. Max Switch Rating: 1 Amp Mechanical Life Cycles: 100000 |
|
|
Pushbutton
10-101
Contact Type: Wiping Contacts with Overtravel Circuitry: SPST - N.C. Max Switch Rating: 1 Amp Mechanical Life Cycles: 100000 |
|
|
Pushbutton
10-10UL
Contact Type: Wiping Contacts with Overtravel Circuitry: SPST - N.C. Max Switch Rating: 1 Amp Mechanical Life Cycles: 6000 |
|
|
Pushbutton
4001
Contact Type: Wiping Contacts with Overtravel Circuitry: SPST - N.O. Max Switch Rating: 1 Amp Mechanical Life Cycles: 100000 |
|
|
Pushbutton
4001UL
Contact Type: Wiping Contacts with Overtravel Circuitry: SPST - N.O. Max Switch Rating: 3 Amp Mechanical Life Cycles: 6000 |
|
|
Pushbutton
4002
Contact Type: Wiping Contacts with Overtravel Circuitry: SPST - N.C. Max Switch Rating: 1 Amp Mechanical Life Cycles: 100000 |
|
|
Pushbutton
4002UL
Contact Type: Wiping Contacts with Overtravel Circuitry: SPST - N.C. Max Switch Rating: 3 Amp Mechanical Life Cycles: 6000 |
