Series: 14

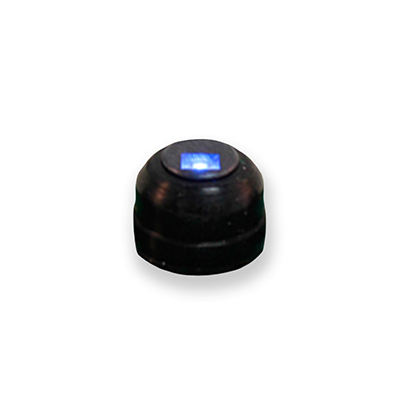

Grayhill’s sealed, bright LED-illuminated 14 Pushbutton switches are a reliable and durable solution for many applications. Our pushbuttons feature various contact mechanisms, circuitry, mounting, and termination options, making it easy to find a model that suits your needs. The 14 Pushbutton is widely used in different applications, such as multi-function handgrips or joysticks in open and closed-cab work vehicles. It can also be found in handheld remote controllers for robotics and unmanned vehicles, as well as portable medical devices like defibrillators. Additionally, the 14 Pushbutton is utilized in belly boxes (remote control transmitters), marine applications, and motorcycles. If you require customization, we can provide tailored options. This includes adjusting the actuation force and travel distance and offering specific termination and cabling solutions. Our flexibility allows you to create the ideal pushbutton switch for your particular use case. Additionally, we offer a range of customizations such as custom caps and legends, unique detents (clicks) and tactile feedback, multiple termination and cabling options, custom electronics, and integration into a Grayhill custom front panel assembly. With these options, you can ensure that your pushbutton switches meet your exact specifications and requirements.
Link copied to clipboard.
Request Quote
- Products
- Description

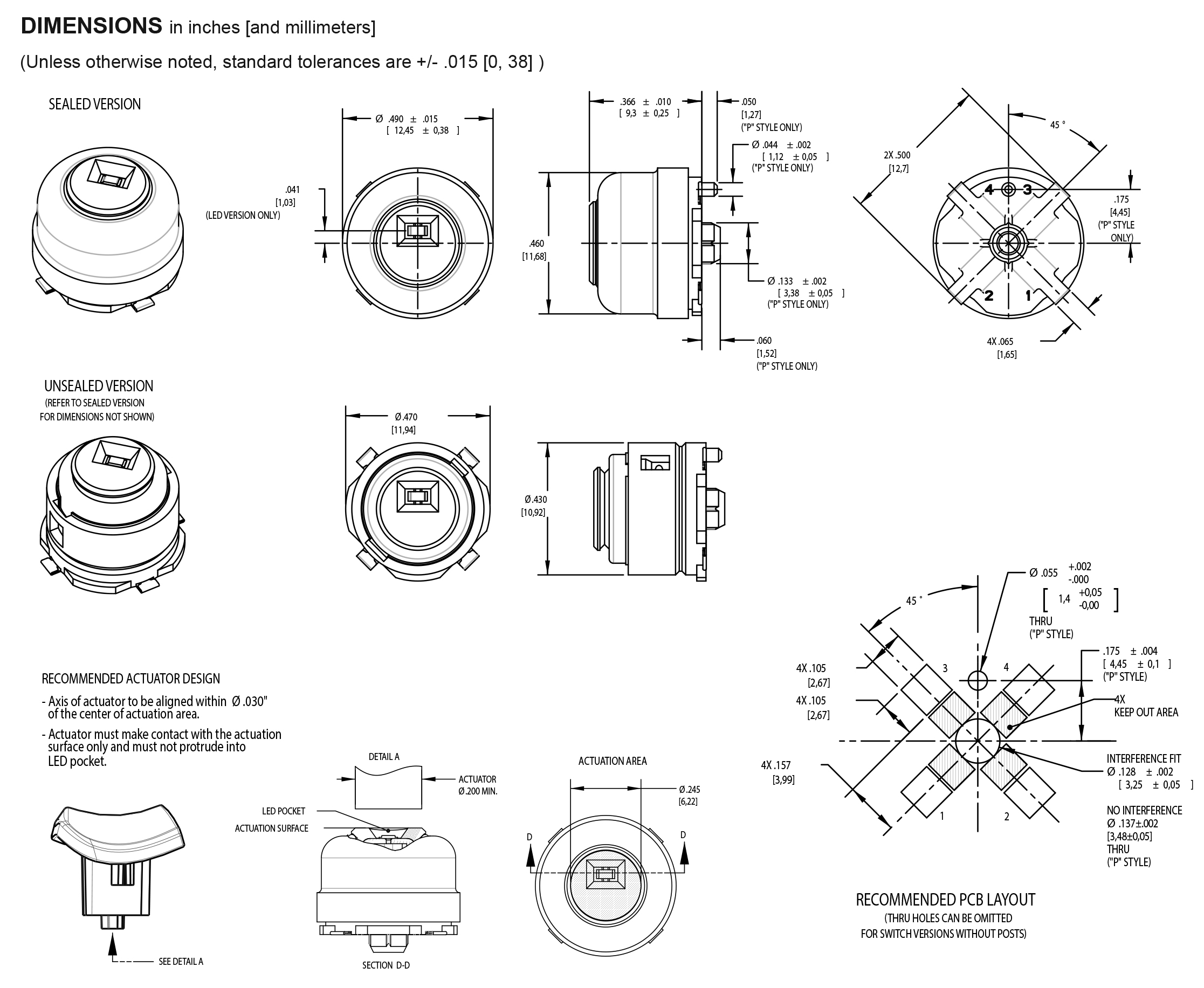

- Drawings
- Downloads
| Product | Contact Type | Circuitry | Max Switch Rating | Mechanical Life Cycles |
|---|---|---|---|---|
|
Pushbutton
14A-L1-02-G
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14A-L1-02-R
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14A-S1-01
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-D1-01
|
Wiping Contacts | DPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-D1-02
|
Wiping Contacts | DPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-L1-02-B
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-L1-02-G
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-L1-02-O
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-L1-02-R
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-L1-02-W
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-L1-02-Y
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-L1-03-B
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-L1-03-G
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-L1-03-O
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-L1-03-R
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-L1-03-W
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-L1-03-Y
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-S1-01
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14AP-S1-02
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14S-D1-02
|
Wiping Contacts | DPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14S-D1-03
|
Wiping Contacts | DPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14S-L1-02-G
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14S-L1-02-R
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14SP-D1-01
|
Wiping Contacts | DPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14SP-D1-02
|
Wiping Contacts | DPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14SP-L1-02-B
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14SP-L1-02-G
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14SP-L1-02-O
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14SP-L1-02-R
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14SP-L1-02-W
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14SP-L1-02-Y
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14SP-L1-03-B
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14SP-L1-03-G
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14SP-L1-03-O
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14SP-L1-03-R
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14SP-L1-03-W
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14SP-L1-03-Y
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
|
Pushbutton
14SP-S1-03
|
Wiping Contacts | SPST - N.O. | 100 mA | 100000 |
- Sealed & Illuminated
- Electrical Rating: 100 mA at 30 VDC
- Circuitry: SPST, DPST
- Termination: SMT
- Life Rating (cycles): 1,000,000
- Sealed & Illuminated
- Electrical Rating: 100 mA at 30 VDC
- Circuitry: SPST, DPST
- Termination: SMT
- Life Rating (cycles): 1,000,000
Products
|
|
Pushbutton
14A-L1-02-G
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14A-L1-02-R
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14A-S1-01
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-D1-01
Contact Type: Wiping Contacts Circuitry: DPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-D1-02
Contact Type: Wiping Contacts Circuitry: DPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-L1-02-B
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-L1-02-G
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-L1-02-O
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-L1-02-R
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-L1-02-W
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-L1-02-Y
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-L1-03-B
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-L1-03-G
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-L1-03-O
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-L1-03-R
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-L1-03-W
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-L1-03-Y
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-S1-01
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14AP-S1-02
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14S-D1-02
Contact Type: Wiping Contacts Circuitry: DPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14S-D1-03
Contact Type: Wiping Contacts Circuitry: DPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14S-L1-02-G
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14S-L1-02-R
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14SP-D1-01
Contact Type: Wiping Contacts Circuitry: DPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14SP-D1-02
Contact Type: Wiping Contacts Circuitry: DPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14SP-L1-02-B
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14SP-L1-02-G
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14SP-L1-02-O
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14SP-L1-02-R
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14SP-L1-02-W
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14SP-L1-02-Y
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14SP-L1-03-B
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14SP-L1-03-G
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14SP-L1-03-O
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14SP-L1-03-R
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14SP-L1-03-W
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14SP-L1-03-Y
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
|
|
Pushbutton
14SP-S1-03
Contact Type: Wiping Contacts Circuitry: SPST - N.O. Max Switch Rating: 100 mA Mechanical Life Cycles: 100000 |
