Series: 95C04
- 6mm x 3.5mm
- Life Rating: 50,000 cycles
- Operating Force (grams): 160, 320
- Termination: SMT, Thru-Hole
Link copied to clipboard.
Request Quote
- Products
- Description

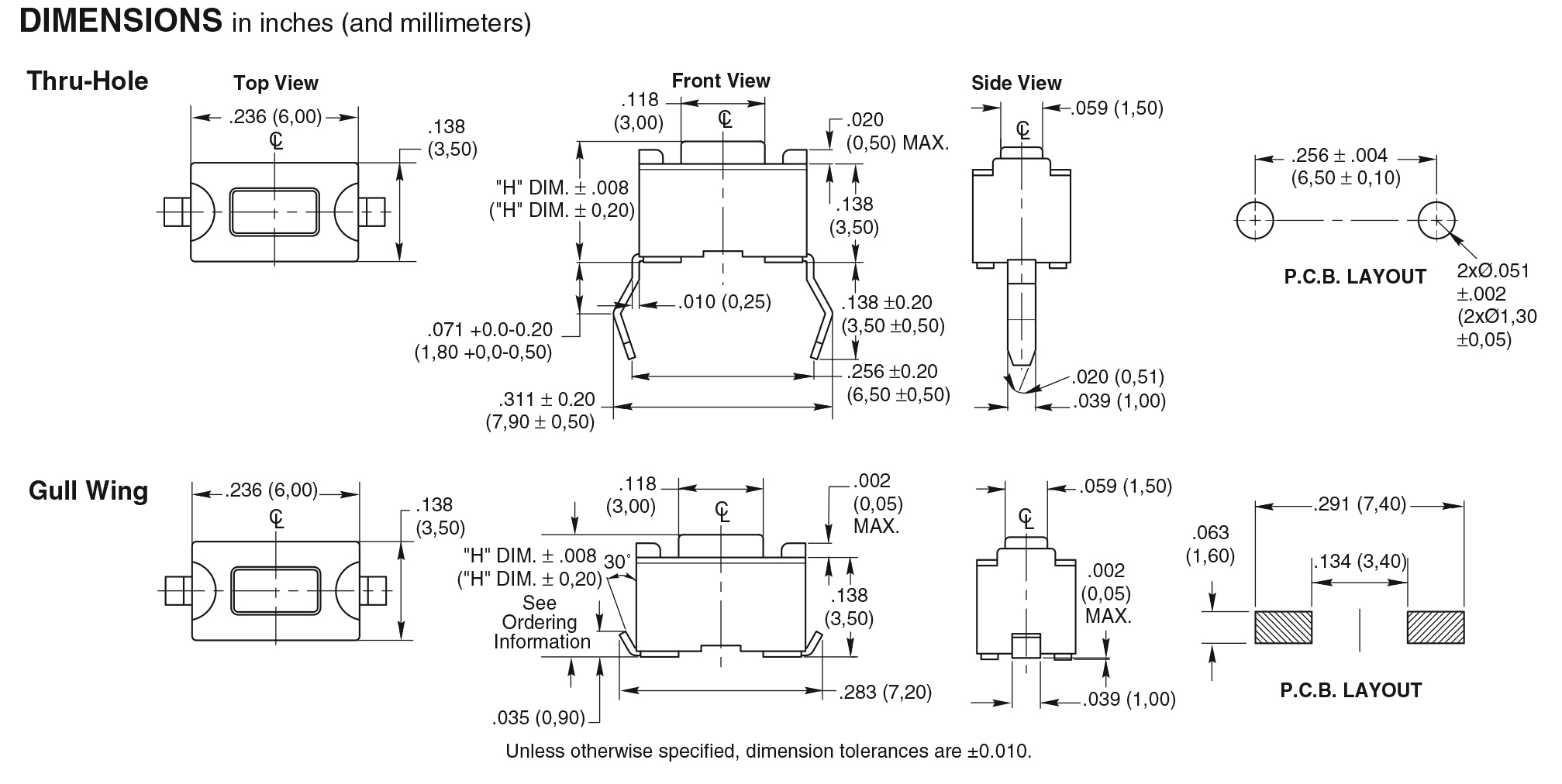

- Drawings
- Downloads
| Product | Switch Style | Electrical Rating | 3D Model Available | Washable |
|---|---|---|---|---|
|
Tact Switch
95C04A3GWRT
|
SMT | 50 mA, 12 VDC | Yes | No |
|
Tact Switch
95C04A3GWT
|
SMT | 50 mA, 12 VDC | Yes | No |
|
Tact Switch
95C04A3T
|
PC Mount | 50 mA, 12 VDC | Yes | No |
|
Tact Switch
95C04A5GWRT
|
SMT | 50 mA, 12 VDC | Yes | No |
|
Tact Switch
95C04A5GWT
|
SMT | 50 mA, 12 VDC | Yes | No |
|
Tact Switch
95C04A5T
|
PC Mount | 50 mA, 12 VDC | Yes | No |
|
Tact Switch
95C04B3GWRT
|
SMT | 50 mA, 12 VDC | Yes | No |
|
Tact Switch
95C04B3GWT
|
SMT | 50 mA, 12 VDC | Yes | No |
|
Tact Switch
95C04B3T
|
PC Mount | 50 mA, 12 VDC | Yes | No |
|
Tact Switch
95C04B5GWRT
|
SMT | 50 mA, 12 VDC | Yes | No |
|
Tact Switch
95C04B5GWT
|
SMT | 50 mA, 12 VDC | Yes | No |
|
Tact Switch
95C04B5T
|
PC Mount | 50 mA, 12 VDC | Yes | No |
- 6mm x 3.5mm
- Life Rating: 50,000 cycles
- Operating Force (grams): 160, 320
- Termination: SMT, Thru-Hole
- 6mm x 3.5mm
- Life Rating: 50,000 cycles
- Operating Force (grams): 160, 320
- Termination: SMT, Thru-Hole
Products
|
|
Tact Switch
95C04A3GWRT
Switch Style: SMT Electrical Rating: 50 mA, 12 VDC 3D Model Available: Yes Washable: No |
|
|
Tact Switch
95C04A3GWT
Switch Style: SMT Electrical Rating: 50 mA, 12 VDC 3D Model Available: Yes Washable: No |
|
|
Tact Switch
95C04A3T
Switch Style: PC Mount Electrical Rating: 50 mA, 12 VDC 3D Model Available: Yes Washable: No |
|
|
Tact Switch
95C04A5GWRT
Switch Style: SMT Electrical Rating: 50 mA, 12 VDC 3D Model Available: Yes Washable: No |
|
|
Tact Switch
95C04A5GWT
Switch Style: SMT Electrical Rating: 50 mA, 12 VDC 3D Model Available: Yes Washable: No |
|
|
Tact Switch
95C04A5T
Switch Style: PC Mount Electrical Rating: 50 mA, 12 VDC 3D Model Available: Yes Washable: No |
|
|
Tact Switch
95C04B3GWRT
Switch Style: SMT Electrical Rating: 50 mA, 12 VDC 3D Model Available: Yes Washable: No |
|
|
Tact Switch
95C04B3GWT
Switch Style: SMT Electrical Rating: 50 mA, 12 VDC 3D Model Available: Yes Washable: No |
|
|
Tact Switch
95C04B3T
Switch Style: PC Mount Electrical Rating: 50 mA, 12 VDC 3D Model Available: Yes Washable: No |
|
|
Tact Switch
95C04B5GWRT
Switch Style: SMT Electrical Rating: 50 mA, 12 VDC 3D Model Available: Yes Washable: No |
|
|
Tact Switch
95C04B5GWT
Switch Style: SMT Electrical Rating: 50 mA, 12 VDC 3D Model Available: Yes Washable: No |
|
|
Tact Switch
95C04B5T
Switch Style: PC Mount Electrical Rating: 50 mA, 12 VDC 3D Model Available: Yes Washable: No |
