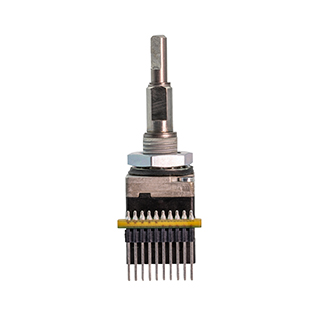

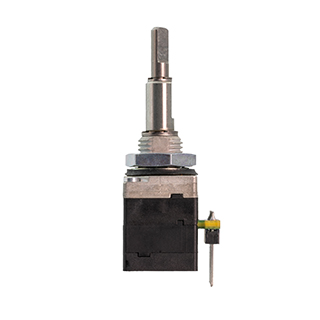

Product Image

Series: 20

Smallest with concentric shafts
Angle of Throw: 22.5, 30, 36, 45
Positions: 8, 10, 12, 16
Body Size inches [mm]: .500 [12,70] square
Depth Behind Panel inches [mm]: .659 [16.74]

Link copied to clipboard. Request Quote

Products
Description

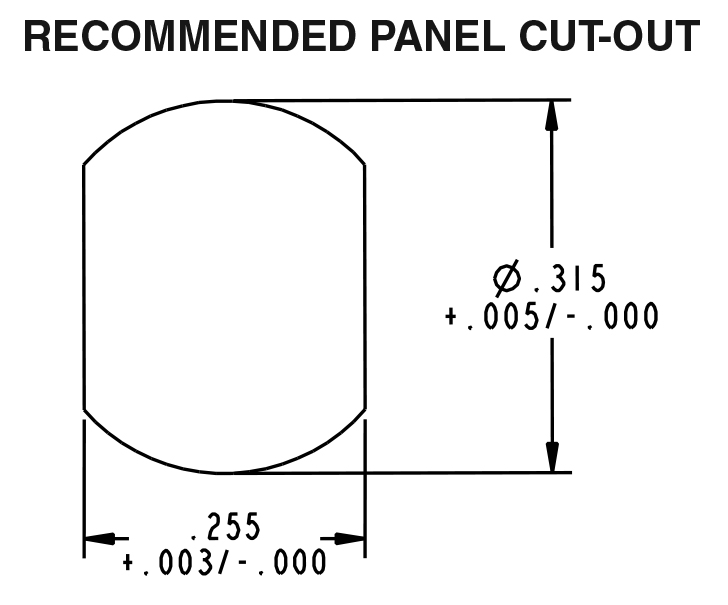

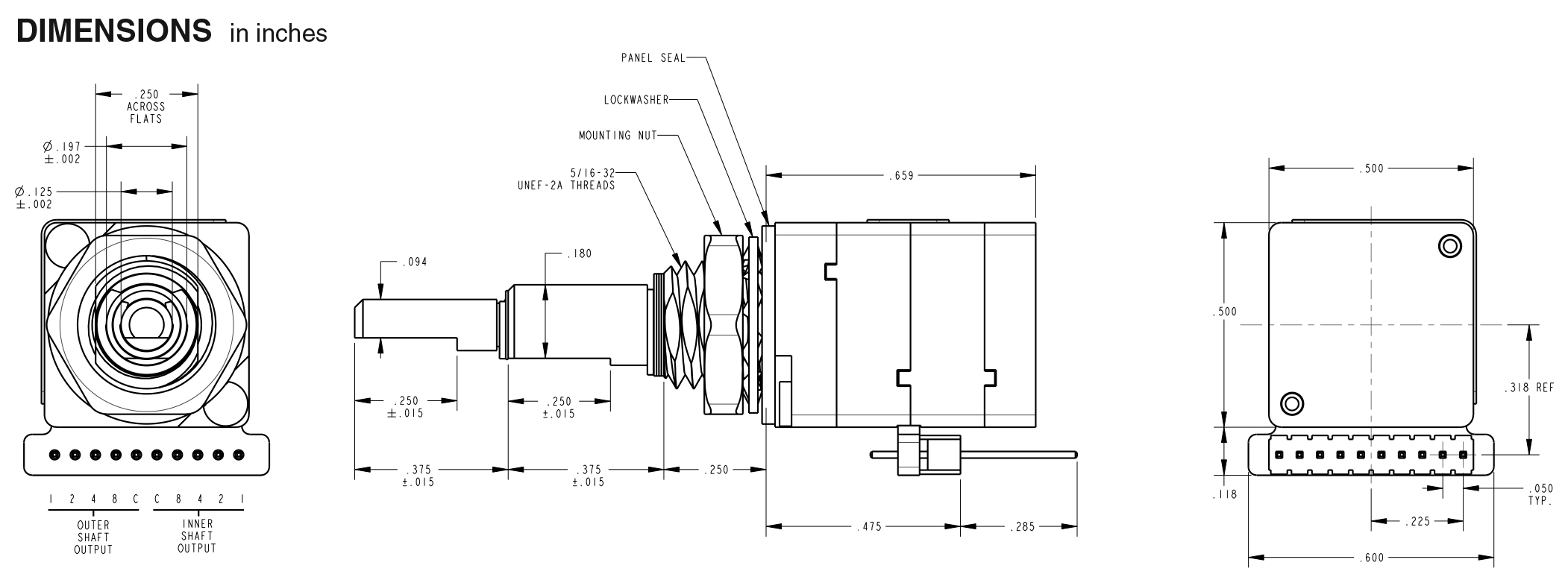

Drawings
Downloads

Product	Output	Angle of Throw (°)	Positions per Pole	Number of Decks
Mechanical Encoder 20SB2AF-B5AF-P	Binary Code	22.5	16	2
Mechanical Encoder 20SG204-G2AC-P	Gray Code	22.5	16	2
Mechanical Encoder 20SG205-G2AC-P	Gray Code	22.5	16	2
Mechanical Encoder 20SG206-G206-P	Gray Code	22.5	16	2
Mechanical Encoder 20SG207-G207-P	Gray Code	22.5	16	2
Mechanical Encoder 20SG2AC-G2AC-P	Gray Code	22.5	16	2
Mechanical Encoder 20SG2AC-Q2AC-P	Quadrature Code	22.5	16	2

Smallest with concentric shafts
Angle of Throw: 22.5, 30, 36, 45
Positions: 8, 10, 12, 16
Body Size inches [mm]: .500 [12,70] square
Depth Behind Panel inches [mm]: .659 [16.74]

Smallest with concentric shafts
Angle of Throw: 22.5, 30, 36, 45
Positions: 8, 10, 12, 16
Body Size inches [mm]: .500 [12,70] square
Depth Behind Panel inches [mm]: .659 [16.74]

Products

	Mechanical Encoder 20SB2AF-B5AF-P Output: Binary Code Angle of Throw (°): 22.5 Positions per Pole: 16 Number of Decks: 2
	Mechanical Encoder 20SG204-G2AC-P Output: Gray Code Angle of Throw (°): 22.5 Positions per Pole: 16 Number of Decks: 2
	Mechanical Encoder 20SG205-G2AC-P Output: Gray Code Angle of Throw (°): 22.5 Positions per Pole: 16 Number of Decks: 2
	Mechanical Encoder 20SG206-G206-P Output: Gray Code Angle of Throw (°): 22.5 Positions per Pole: 16 Number of Decks: 2
	Mechanical Encoder 20SG207-G207-P Output: Gray Code Angle of Throw (°): 22.5 Positions per Pole: 16 Number of Decks: 2
	Mechanical Encoder 20SG2AC-G2AC-P Output: Gray Code Angle of Throw (°): 22.5 Positions per Pole: 16 Number of Decks: 2
	Mechanical Encoder 20SG2AC-Q2AC-P Output: Quadrature Code Angle of Throw (°): 22.5 Positions per Pole: 16 Number of Decks: 2
