Series: 44L
- 8-pin, round key security
- Options for flat keys, special keying, and key removals
- Poles: up to 4
- Decks: up to 6
- Angle of Throw: 45
- Positions: 8
- Rating (max): 5 Amps
- Depth Behind Panel: 1.56" to 3.54"
Link copied to clipboard.
Request Quote
- Products
- Description

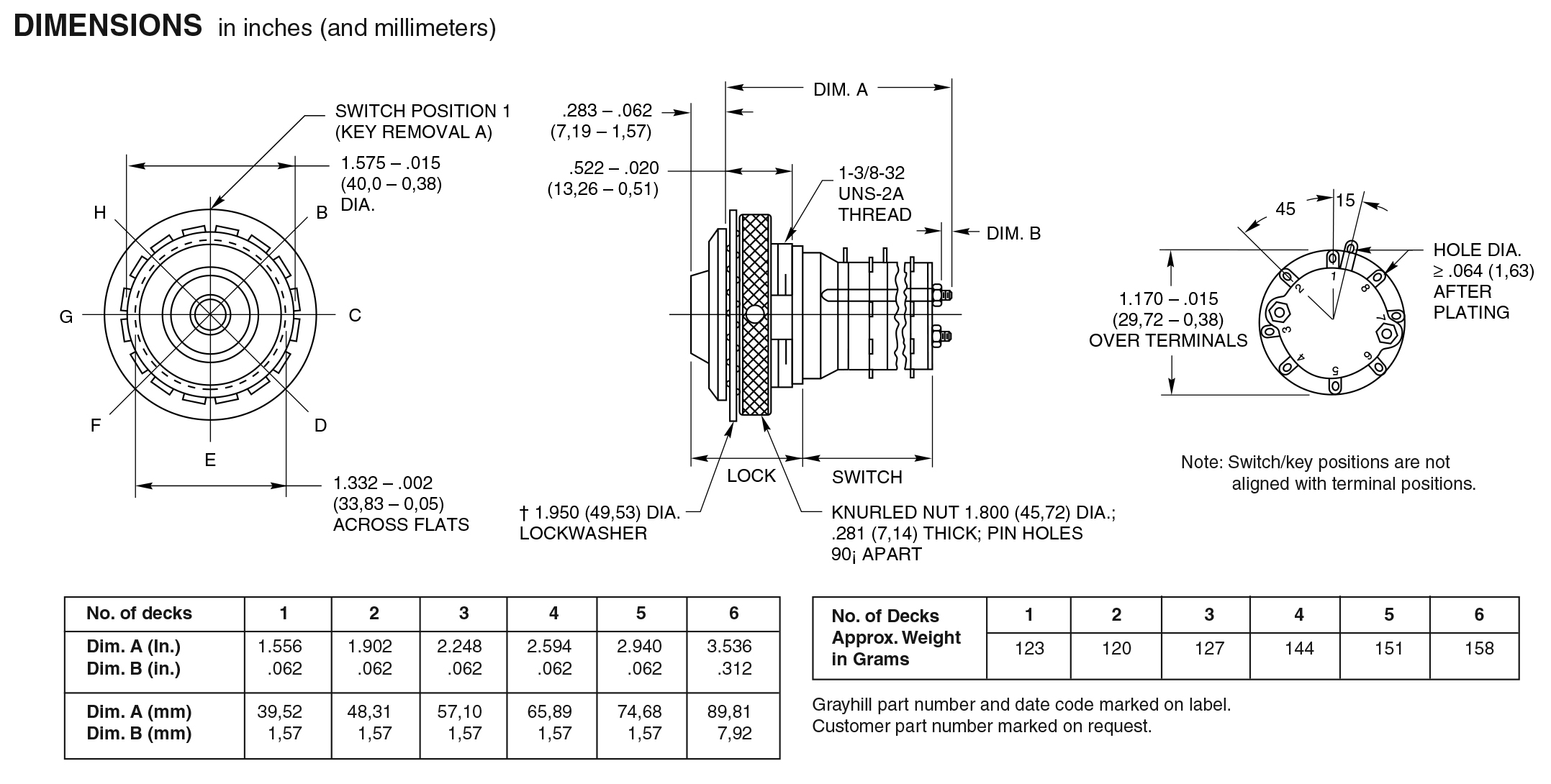

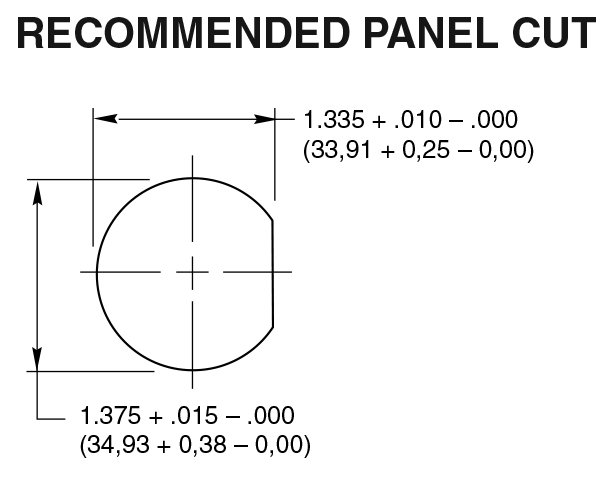

- Drawings
- Downloads
| Product | Output | Angle of Throw (°) | Positions per Pole | Number of Decks |
|---|---|---|---|---|
|
Keylock Rotary Switch
44L45-01-1-02N
|
Rotary | 45 | 2 | 1 |
|
Keylock Rotary Switch
44L45-01-1-02S
|
Rotary | 45 | 2 | 1 |
|
Keylock Rotary Switch
44L45-01-1-03N
|
Rotary | 45 | 3 | 1 |
|
Keylock Rotary Switch
44L45-01-1-03S
|
Rotary | 45 | 3 | 1 |
|
Keylock Rotary Switch
44L45-01-1-04N
|
Rotary | 45 | 4 | 1 |
|
Keylock Rotary Switch
44L45-01-1-05N
|
Rotary | 45 | 5 | 1 |
|
Keylock Rotary Switch
44L45-01-1-05S
|
Rotary | 45 | 5 | 1 |
|
Keylock Rotary Switch
44L45-01-1-06N
|
Rotary | 45 | 6 | 1 |
|
Keylock Rotary Switch
44L45-01-1-07N
|
Rotary | 45 | 7 | 1 |
|
Keylock Rotary Switch
44L45-01-1-08N
|
Rotary | 45 | 8 | 1 |
|
Keylock Rotary Switch
44L45-01-1-08N-F
|
Rotary | 45 | 8 | 1 |
|
Keylock Rotary Switch
44L45-01-2-02N
|
Rotary | 45 | 2 | 1 |
|
Keylock Rotary Switch
44L45-01-2-02S
|
Rotary | 45 | 2 | 1 |
|
Keylock Rotary Switch
44L45-01-2-03N
|
Rotary | 45 | 3 | 1 |
|
Keylock Rotary Switch
44L45-01-2-03S
|
Rotary | 45 | 3 | 1 |
|
Keylock Rotary Switch
44L45-01-2-04N
|
Rotary | 45 | 4 | 1 |
|
Keylock Rotary Switch
44L45-01-2-04S
|
Rotary | 45 | 4 | 1 |
|
Keylock Rotary Switch
44L45-01-3-02N
|
Rotary | 45 | 2 | 1 |
|
Keylock Rotary Switch
44L45-01-4-02N
|
Rotary | 45 | 2 | 1 |
|
Keylock Rotary Switch
44L45-02-1-02N
|
Rotary | 45 | 2 | 2 |
|
Keylock Rotary Switch
44L45-02-1-02S
|
Rotary | 45 | 2 | 2 |
|
Keylock Rotary Switch
44L45-02-1-03N
|
Rotary | 45 | 3 | 2 |
|
Keylock Rotary Switch
44L45-02-1-03S
|
Rotary | 45 | 3 | 2 |
|
Keylock Rotary Switch
44L45-02-1-04N
|
Rotary | 45 | 4 | 2 |
|
Keylock Rotary Switch
44L45-02-1-04S
|
Rotary | 45 | 4 | 2 |
|
Keylock Rotary Switch
44L45-02-1-05N
|
Rotary | 45 | 5 | 2 |
|
Keylock Rotary Switch
44L45-02-1-08N
|
Rotary | 45 | 8 | 2 |
|
Keylock Rotary Switch
44L45-02-1-08N-F
|
Rotary | 45 | 8 | 2 |
|
Keylock Rotary Switch
44L45-02-1-08S
|
Rotary | 45 | 8 | 2 |
|
Keylock Rotary Switch
44L45-02-1-08S-F
|
Rotary | 45 | 8 | 2 |
|
Keylock Rotary Switch
44L45-02-2-02N
|
Rotary | 45 | 2 | 2 |
|
Keylock Rotary Switch
44L45-02-2-02S
|
Rotary | 45 | 2 | 2 |
|
Keylock Rotary Switch
44L45-02-2-03N
|
Rotary | 45 | 3 | 2 |
|
Keylock Rotary Switch
44L45-02-2-03S
|
Rotary | 45 | 3 | 2 |
|
Keylock Rotary Switch
44L45-02-2-04N
|
Rotary | 45 | 4 | 2 |
|
Keylock Rotary Switch
44L45-02-2-04S
|
Rotary | 45 | 4 | 2 |
|
Keylock Rotary Switch
44L45-02-3-02N
|
Rotary | 45 | 2 | 2 |
|
Keylock Rotary Switch
44L45-02-4-02N
|
Rotary | 45 | 2 | 2 |
|
Keylock Rotary Switch
44L45-03-1-02N
|
Rotary | 45 | 2 | 3 |
|
Keylock Rotary Switch
44L45-03-1-03N
|
Rotary | 45 | 3 | 3 |
|
Keylock Rotary Switch
44L45-03-1-03S
|
Rotary | 45 | 3 | 3 |
|
Keylock Rotary Switch
44L45-03-1-04N
|
Rotary | 45 | 4 | 3 |
|
Keylock Rotary Switch
44L45-03-1-05S
|
Rotary | 45 | 5 | 3 |
|
Keylock Rotary Switch
44L45-03-1-06N
|
Rotary | 45 | 6 | 3 |
|
Keylock Rotary Switch
44L45-03-1-08N
|
Rotary | 45 | 8 | 3 |
|
Keylock Rotary Switch
44L45-03-1-08N-F
|
Rotary | 45 | 8 | 3 |
|
Keylock Rotary Switch
44L45-03-2-02N
|
Rotary | 45 | 2 | 3 |
|
Keylock Rotary Switch
44L45-03-2-03N
|
Rotary | 45 | 3 | 3 |
|
Keylock Rotary Switch
44L45-03-2-04N
|
Rotary | 45 | 4 | 3 |
|
Keylock Rotary Switch
44L45-03-2-04S
|
Rotary | 45 | 4 | 3 |
|
Keylock Rotary Switch
44L45-04-1-02N
|
Rotary | 45 | 2 | 4 |
|
Keylock Rotary Switch
44L45-04-1-03N
|
Rotary | 45 | 3 | 4 |
|
Keylock Rotary Switch
44L45-04-1-03S
|
Rotary | 45 | 3 | 4 |
|
Keylock Rotary Switch
44L45-04-1-04N
|
Rotary | 45 | 4 | 4 |
|
Keylock Rotary Switch
44L45-04-1-04S
|
Rotary | 45 | 4 | 4 |
|
Keylock Rotary Switch
44L45-04-1-05N
|
Rotary | 45 | 5 | 4 |
|
Keylock Rotary Switch
44L45-04-1-08N
|
Rotary | 45 | 8 | 4 |
|
Keylock Rotary Switch
44L45-04-1-08N-F
|
Rotary | 45 | 8 | 4 |
|
Keylock Rotary Switch
44L45-05-1-02N
|
Rotary | 45 | 2 | 5 |
|
Keylock Rotary Switch
44L45-05-1-02S
|
Rotary | 45 | 2 | 5 |
|
Keylock Rotary Switch
44L45-05-1-04N
|
Rotary | 45 | 4 | 5 |
|
Keylock Rotary Switch
44L45-05-1-05N
|
Rotary | 45 | 5 | 5 |
|
Keylock Rotary Switch
44L45-06-1-02N
|
Rotary | 45 | 2 | 6 |
|
Keylock Rotary Switch
44L45-06-1-03N
|
Rotary | 45 | 3 | 6 |
|
Keylock Rotary Switch
44L45-06-1-04N
|
Rotary | 45 | 4 | 6 |
|
Keylock Rotary Switch
44L45-06-1-05N
|
Rotary | 45 | 5 | 6 |
|
Keylock Rotary Switch
44L45-06-1-08N-F
|
Rotary | 45 | 8 | 6 |
|
Keylock Rotary Switch
44L45-06-1-08S-F
|
Rotary | 45 | 8 | 6 |
- 8-pin, round key security
- Options for flat keys, special keying, and key removals
- Poles: up to 4
- Decks: up to 6
- Angle of Throw: 45
- Positions: 8
- Rating (max): 5 Amps
- Depth Behind Panel: 1.56" to 3.54"
- 8-pin, round key security
- Options for flat keys, special keying, and key removals
- Poles: up to 4
- Decks: up to 6
- Angle of Throw: 45
- Positions: 8
- Rating (max): 5 Amps
- Depth Behind Panel: 1.56" to 3.54"
Products
|
|
Keylock Rotary Switch
44L45-01-1-02N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-1-02S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-1-03N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-1-03S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-1-04N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 4 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-1-05N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 5 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-1-05S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 5 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-1-06N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 6 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-1-07N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 7 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-1-08N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 8 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-1-08N-F
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 8 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-2-02N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-2-02S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-2-03N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-2-03S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-2-04N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 4 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-2-04S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 4 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-3-02N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-01-4-02N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
44L45-02-1-02N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-1-02S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-1-03N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-1-03S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-1-04N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 4 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-1-04S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 4 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-1-05N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 5 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-1-08N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 8 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-1-08N-F
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 8 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-1-08S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 8 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-1-08S-F
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 8 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-2-02N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-2-02S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-2-03N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-2-03S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-2-04N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 4 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-2-04S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 4 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-3-02N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-02-4-02N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
44L45-03-1-02N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 3 |
|
|
Keylock Rotary Switch
44L45-03-1-03N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 3 Number of Decks: 3 |
|
|
Keylock Rotary Switch
44L45-03-1-03S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 3 Number of Decks: 3 |
|
|
Keylock Rotary Switch
44L45-03-1-04N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 4 Number of Decks: 3 |
|
|
Keylock Rotary Switch
44L45-03-1-05S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 5 Number of Decks: 3 |
|
|
Keylock Rotary Switch
44L45-03-1-06N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 6 Number of Decks: 3 |
|
|
Keylock Rotary Switch
44L45-03-1-08N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 8 Number of Decks: 3 |
|
|
Keylock Rotary Switch
44L45-03-1-08N-F
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 8 Number of Decks: 3 |
|
|
Keylock Rotary Switch
44L45-03-2-02N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 3 |
|
|
Keylock Rotary Switch
44L45-03-2-03N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 3 Number of Decks: 3 |
|
|
Keylock Rotary Switch
44L45-03-2-04N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 4 Number of Decks: 3 |
|
|
Keylock Rotary Switch
44L45-03-2-04S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 4 Number of Decks: 3 |
|
|
Keylock Rotary Switch
44L45-04-1-02N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 4 |
|
|
Keylock Rotary Switch
44L45-04-1-03N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 3 Number of Decks: 4 |
|
|
Keylock Rotary Switch
44L45-04-1-03S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 3 Number of Decks: 4 |
|
|
Keylock Rotary Switch
44L45-04-1-04N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 4 Number of Decks: 4 |
|
|
Keylock Rotary Switch
44L45-04-1-04S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 4 Number of Decks: 4 |
|
|
Keylock Rotary Switch
44L45-04-1-05N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 5 Number of Decks: 4 |
|
|
Keylock Rotary Switch
44L45-04-1-08N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 8 Number of Decks: 4 |
|
|
Keylock Rotary Switch
44L45-04-1-08N-F
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 8 Number of Decks: 4 |
|
|
Keylock Rotary Switch
44L45-05-1-02N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 5 |
|
|
Keylock Rotary Switch
44L45-05-1-02S
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 5 |
|
|
Keylock Rotary Switch
44L45-05-1-04N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 4 Number of Decks: 5 |
|
|
Keylock Rotary Switch
44L45-05-1-05N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 5 Number of Decks: 5 |
|
|
Keylock Rotary Switch
44L45-06-1-02N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 2 Number of Decks: 6 |
|
|
Keylock Rotary Switch
44L45-06-1-03N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 3 Number of Decks: 6 |
|
|
Keylock Rotary Switch
44L45-06-1-04N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 4 Number of Decks: 6 |
|
|
Keylock Rotary Switch
44L45-06-1-05N
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 5 Number of Decks: 6 |
|
|
Keylock Rotary Switch
44L45-06-1-08N-F
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 8 Number of Decks: 6 |
|
|
Keylock Rotary Switch
44L45-06-1-08S-F
Output: Rotary Angle of Throw (°): 45 Positions per Pole: 8 Number of Decks: 6 |
