Series: 3D101
- Intuitive touch technology to select objects and swipe through screens
- Easy application creation and integration with VUI Builder (J1939), or Linux Qt (J1939 and CANopen)
- Up to 4 Video inputs and 3 CAN-bus inputs
- Powerful processor with 3 second boot time (VUI Builder)
- Scratch resistant/anti-glare cover glass is optically bonded to LCD display for superior mechanical and visual performance
- Bright, 1000-nit display is backlit, and provides high contrast text and full color graphics for excellent sunlight readability
Link copied to clipboard.
Request Quote
- Products
- Description

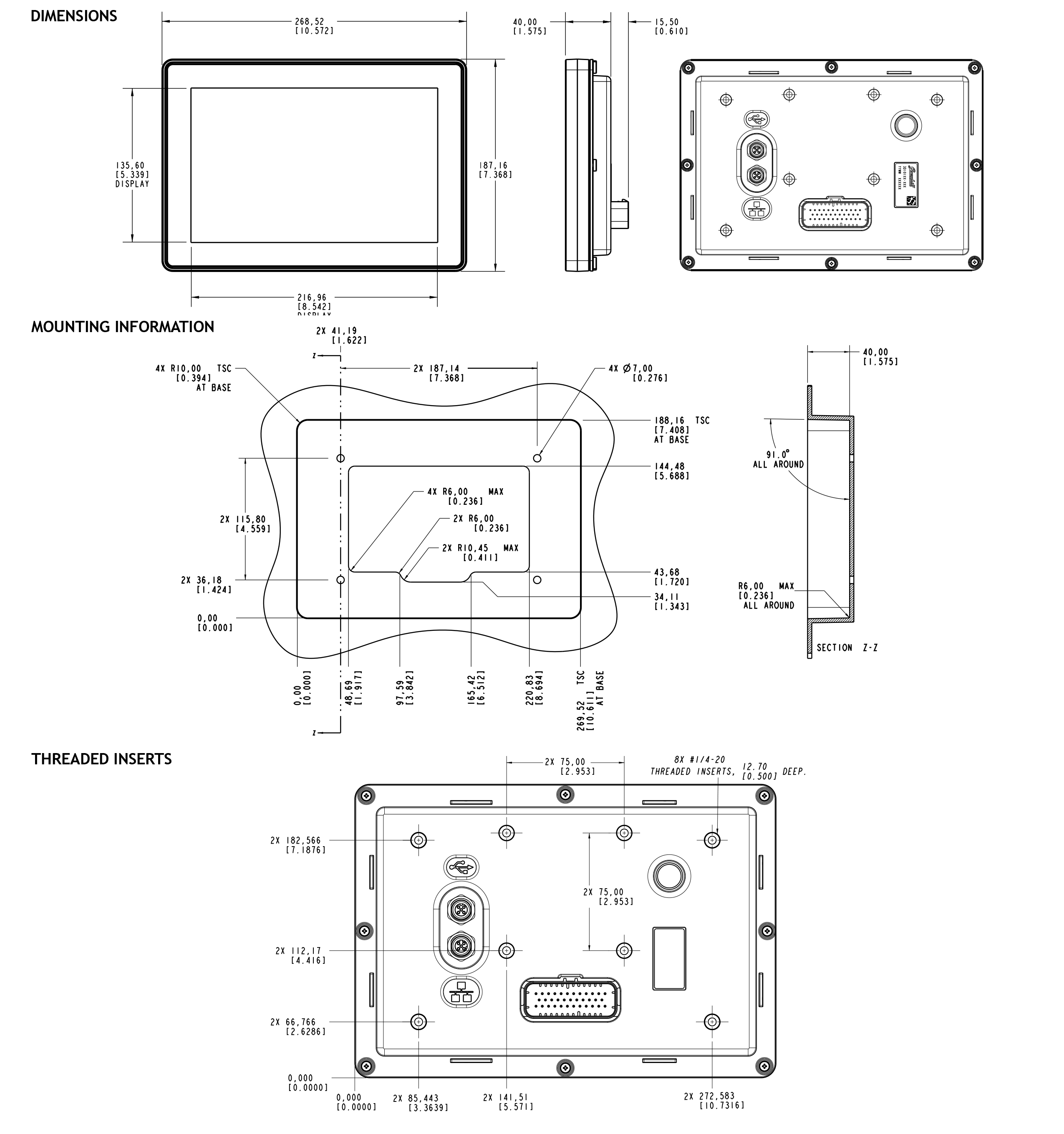

- Drawings
- Downloads
| Product | Display Size | Touchscreen | Operating System | Number of Video Inputs |
|---|---|---|---|---|
|
10.1-inch CAN Bus Display
3D101DEV-200
|
10.1” | Yes | Linux 4.1.15 | 4 |
|
10.1-inch CAN Bus Display
3D101VT-200
|
10.1” | Yes | Linux 4.1.15 | 4 |
|
10.1-inch CAN Bus Display
3D101VT-200-E0
|
10.1” | Yes | Linux 4.1.15 | 4 |
|
10.1-inch CAN Bus Display
3D101VX-200
|
10.1” | No | Linux 4.1.15 | 4 |
|
10.1-inch CAN Bus Display
3D101XX-200
|
10.1” | No | Linux 4.1.15 | 4 |
- Intuitive touch technology to select objects and swipe through screens
- Easy application creation and integration with VUI Builder (J1939), or Linux Qt (J1939 and CANopen)
- Up to 4 Video inputs and 3 CAN-bus inputs
- Powerful processor with 3 second boot time (VUI Builder)
- Scratch resistant/anti-glare cover glass is optically bonded to LCD display for superior mechanical and visual performance
- Bright, 1000-nit display is backlit, and provides high contrast text and full color graphics for excellent sunlight readability
- Intuitive touch technology to select objects and swipe through screens
- Easy application creation and integration with VUI Builder (J1939), or Linux Qt (J1939 and CANopen)
- Up to 4 Video inputs and 3 CAN-bus inputs
- Powerful processor with 3 second boot time (VUI Builder)
- Scratch resistant/anti-glare cover glass is optically bonded to LCD display for superior mechanical and visual performance
- Bright, 1000-nit display is backlit, and provides high contrast text and full color graphics for excellent sunlight readability
Products
|
|
10.1-inch CAN Bus Display
3D101DEV-200
Display Size: 10.1” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 4 |
|
|
10.1-inch CAN Bus Display
3D101VT-200
Display Size: 10.1” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 4 |
|
|
10.1-inch CAN Bus Display
3D101VT-200-E0
Display Size: 10.1” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 4 |
|
|
10.1-inch CAN Bus Display
3D101VX-200
Display Size: 10.1” Touchscreen: No Operating System: Linux 4.1.15 Number of Video Inputs: 4 |
|
|
10.1-inch CAN Bus Display
3D101XX-200
Display Size: 10.1” Touchscreen: No Operating System: Linux 4.1.15 Number of Video Inputs: 4 |
