Series: 3D50
- Intuitive touch technology to select objects and swipe through screens
- Easy application creation and integration with VUI Builder (J1939), Qt, or optional CODESYS (J1939, CANopen, and many more)
- Up to 2 Video inputs and 2 CAN-bus inputs
- Powerful processor with 3 second boot time (VUI Builder)
- Scratch resistant/anti-glare cover glass is optically bonded to LCD display for superior mechanical and visual performance
Link copied to clipboard.
Request Quote
- Products
- Description

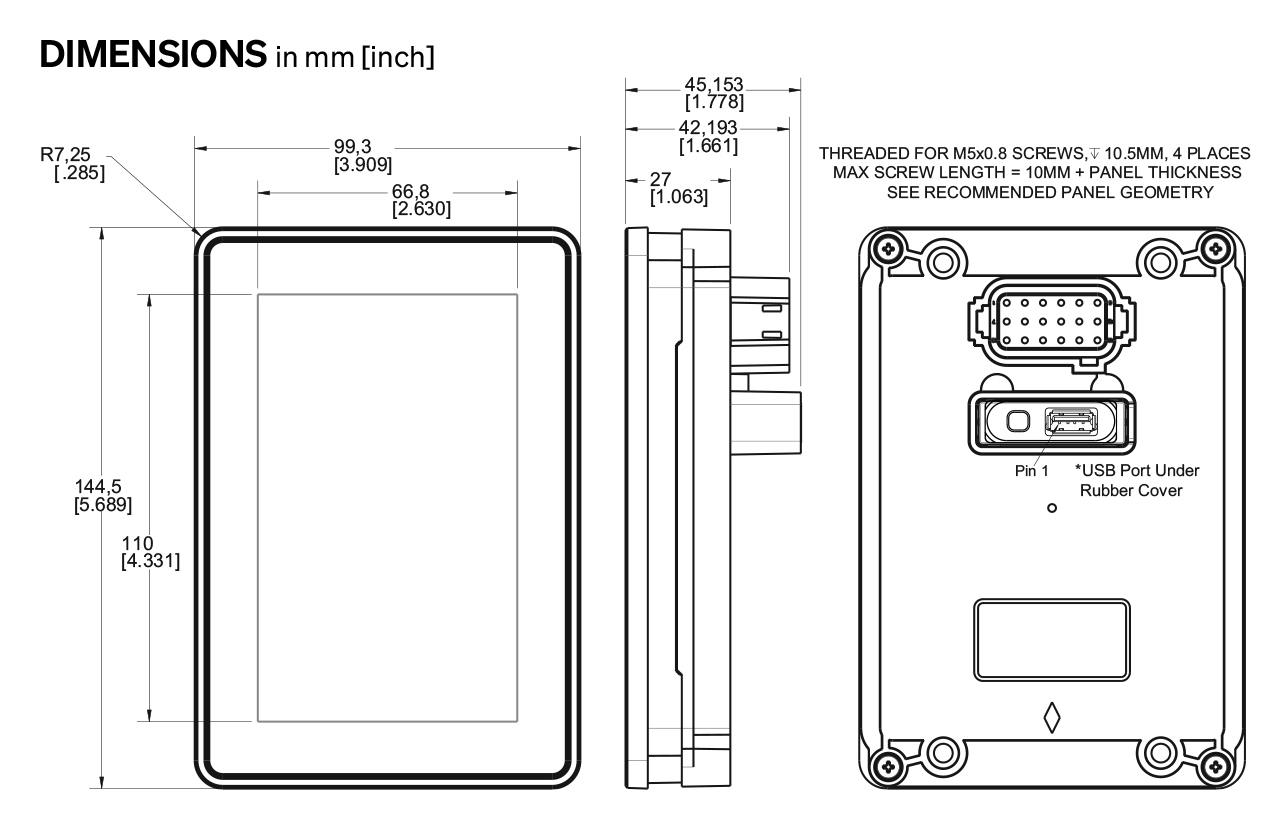

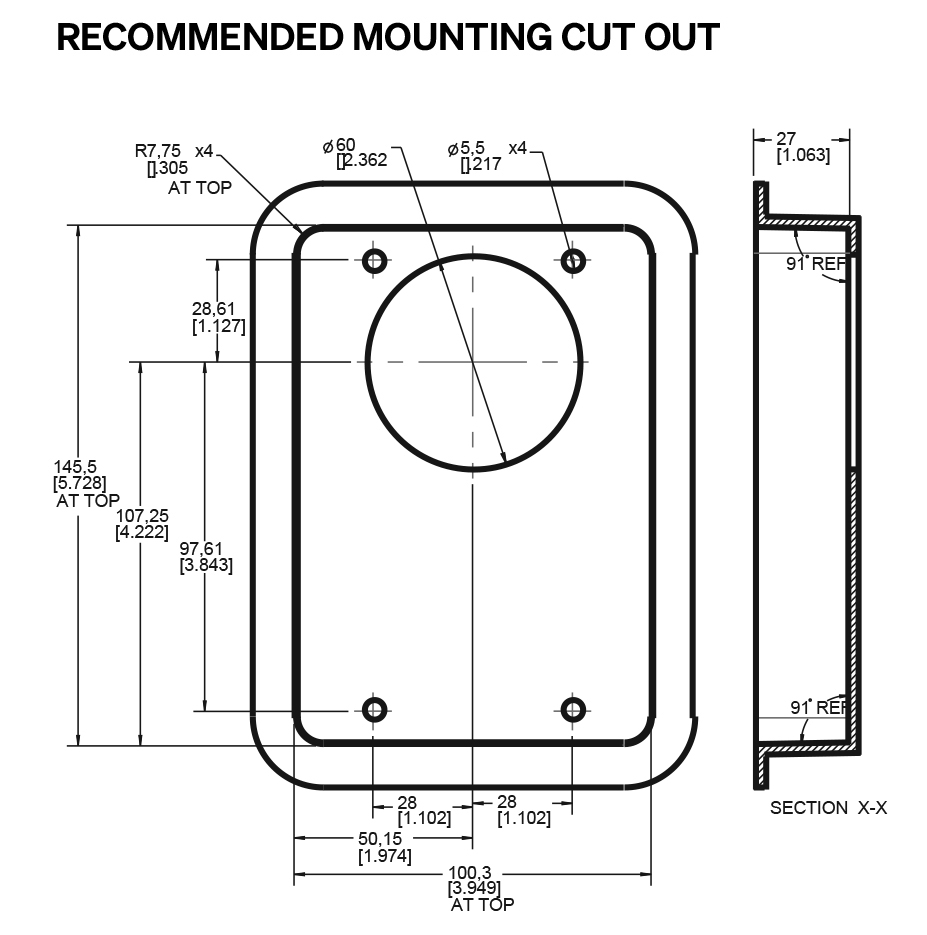

- Drawings
- Downloads
| Product | Display Size | Touchscreen | Operating System | Number of Video Inputs |
|---|---|---|---|---|
|

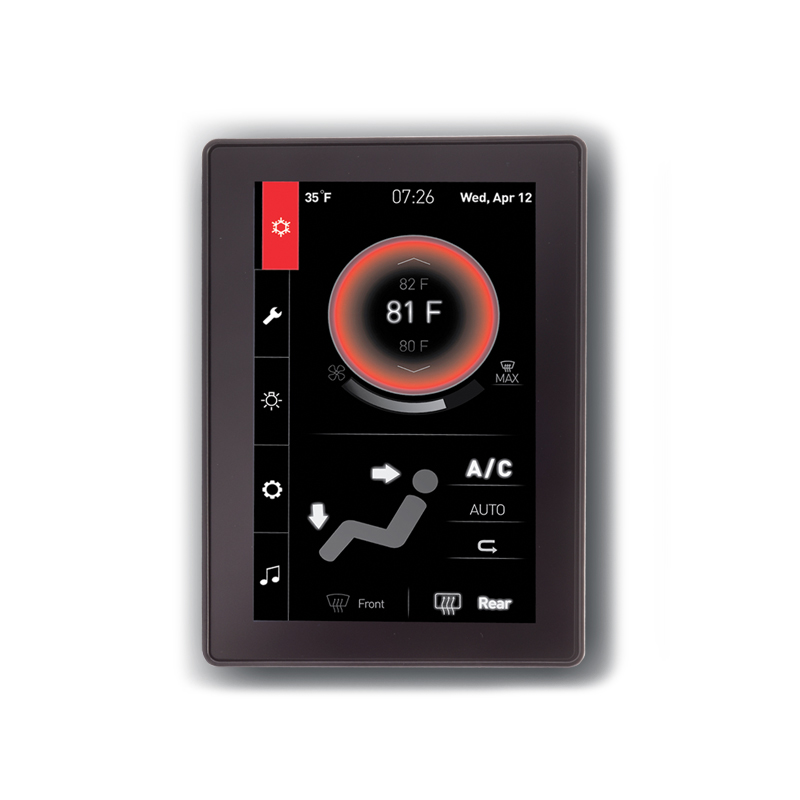

5-inch CAN Bus Display
3D50DEV-200
|
5” | Yes | Linux 4.1.15 | 2 |
|
5-inch CAN Bus Display
3D50DEV-200-C
|
5” | Yes | Linux 4.1.15 | 2 |
|
5-inch CAN Bus Display
3D50VT-200
|
5” | Yes | Linux 4.1.15 | 2 |
|
5-inch CAN Bus Display
3D50VT-200-C
|
5” | Yes | Linux 4.1.15 | 2 |
|
5-inch CAN Bus Display
3D50VX-200
|
5” | No | Linux 4.1.15 | 2 |
|
5-inch CAN Bus Display
3D50VX-200-C
|
5” | No | Linux 4.1.15 | 2 |
|
5-inch CAN Bus Display
3D50XX-200
|
5” | No | Linux 4.1.15 | 0 |
|
5-inch CAN Bus Display
3D50XX-200-C
|
5” | No | Linux 4.1.15 | 0 |
- Intuitive touch technology to select objects and swipe through screens
- Easy application creation and integration with VUI Builder (J1939), Qt, or optional CODESYS (J1939, CANopen, and many more)
- Up to 2 Video inputs and 2 CAN-bus inputs
- Powerful processor with 3 second boot time (VUI Builder)
- Scratch resistant/anti-glare cover glass is optically bonded to LCD display for superior mechanical and visual performance
- Intuitive touch technology to select objects and swipe through screens
- Easy application creation and integration with VUI Builder (J1939), Qt, or optional CODESYS (J1939, CANopen, and many more)
- Up to 2 Video inputs and 2 CAN-bus inputs
- Powerful processor with 3 second boot time (VUI Builder)
- Scratch resistant/anti-glare cover glass is optically bonded to LCD display for superior mechanical and visual performance
Products
|
|
5-inch CAN Bus Display
3D50DEV-200
Display Size: 5” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 2 |
|
|
5-inch CAN Bus Display
3D50DEV-200-C
Display Size: 5” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 2 |
|
|
5-inch CAN Bus Display
3D50VT-200
Display Size: 5” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 2 |
|
|
5-inch CAN Bus Display
3D50VT-200-C
Display Size: 5” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 2 |
|
|
5-inch CAN Bus Display
3D50VX-200
Display Size: 5” Touchscreen: No Operating System: Linux 4.1.15 Number of Video Inputs: 2 |
|
|
5-inch CAN Bus Display
3D50VX-200-C
Display Size: 5” Touchscreen: No Operating System: Linux 4.1.15 Number of Video Inputs: 2 |
|
|
5-inch CAN Bus Display
3D50XX-200
Display Size: 5” Touchscreen: No Operating System: Linux 4.1.15 Number of Video Inputs: 0 |
|
|
5-inch CAN Bus Display
3D50XX-200-C
Display Size: 5” Touchscreen: No Operating System: Linux 4.1.15 Number of Video Inputs: 0 |
